Components and Components Location: Components

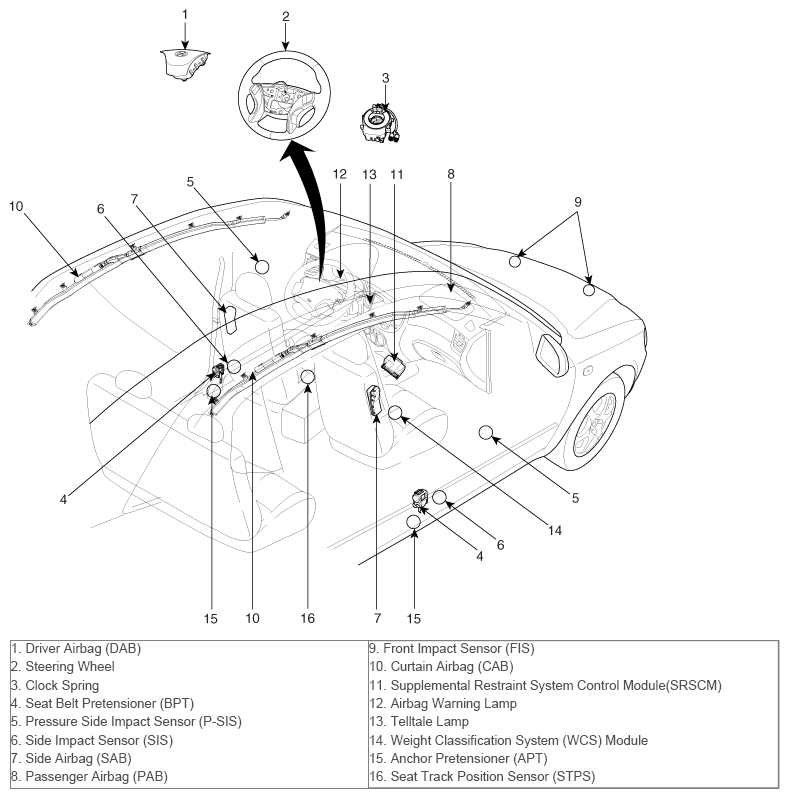

Fig 1: Restraint Component Locations

G10530537

Courtesy of HYUNDAI MOTOR AMERICA
