Power Seat Module - PSM (For Driver)

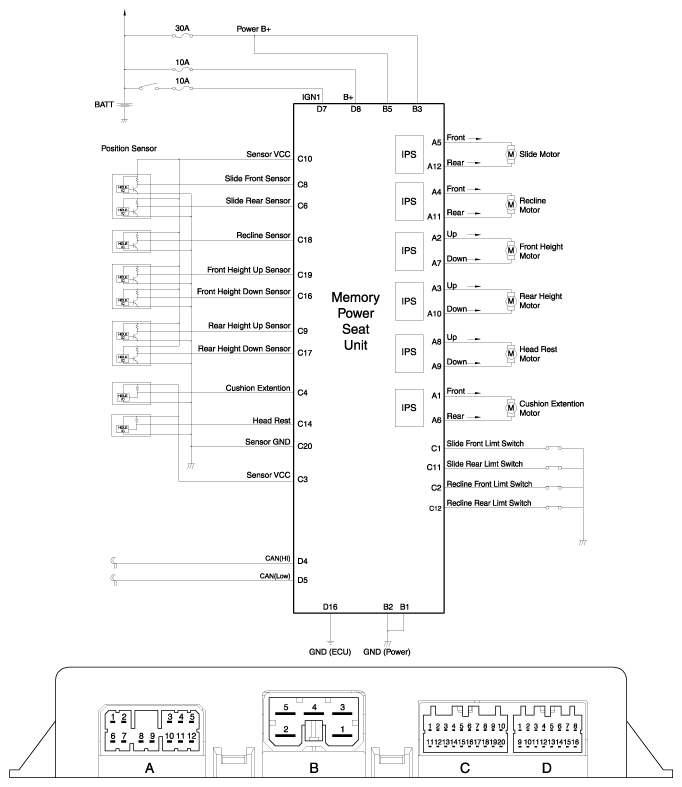

Fig 1: Power Seat Module - Circuit Diagram (For Driver)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
