Circuit Diagram

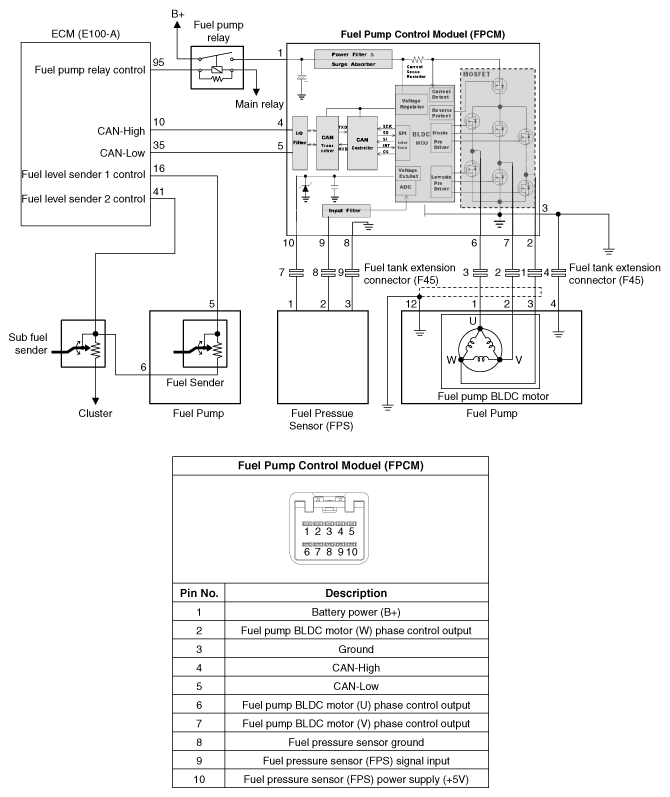

Fig 1: Fuel Pump Control Module Circuit Diagram And Connector Terminal Identification
G10382764Courtesy of HYUNDAI MOTOR AMERICA
