Front To Front End Module Harness Connection Connector End View (EE31)

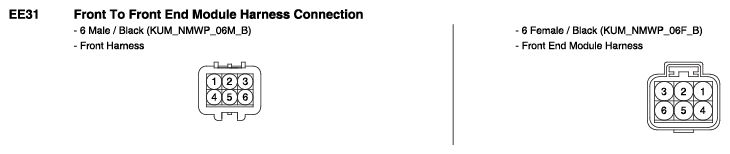

Fig 1: Front To Front End Module Harness Connection Connector End View (EE31)
G10770324Courtesy of HYUNDAI MOTOR AMERICA
