Start/Stop Button Switch Connector End View (M45)

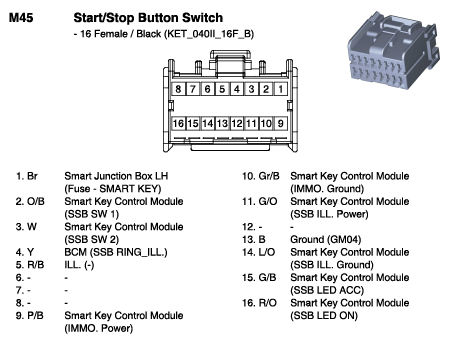

Fig 1: Start/Stop Button Switch Connector End View (M45)
G10769855Courtesy of HYUNDAI MOTOR AMERICA
