Stop Signal Electronic Module Connector End View (M20)

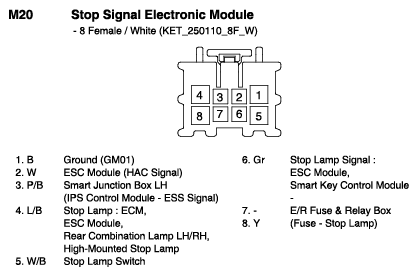

Fig 1: Stop Signal Electronic Module Connector End View (M20)
G10769829Courtesy of HYUNDAI MOTOR AMERICA
