Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

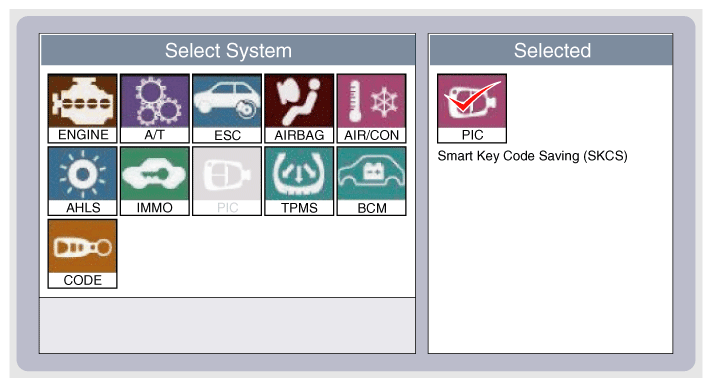

Fig 2: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA

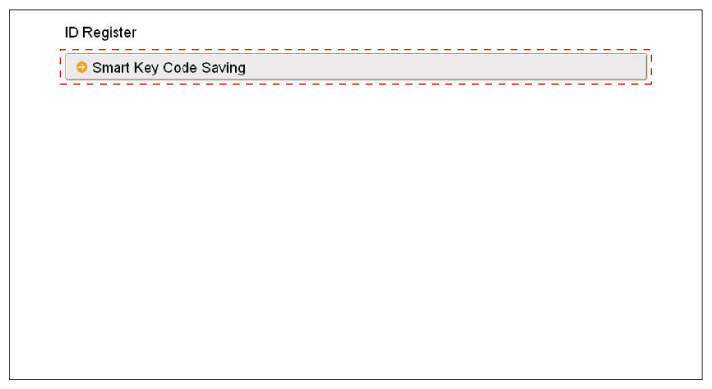

Fig 3: Display - Smart Key Code Saving ID Register Screen
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as in Fig 4.

Fig 4: Display - Smart Key Teaching Menu Screen
Courtesy of HYUNDAI MOTOR AMERICA

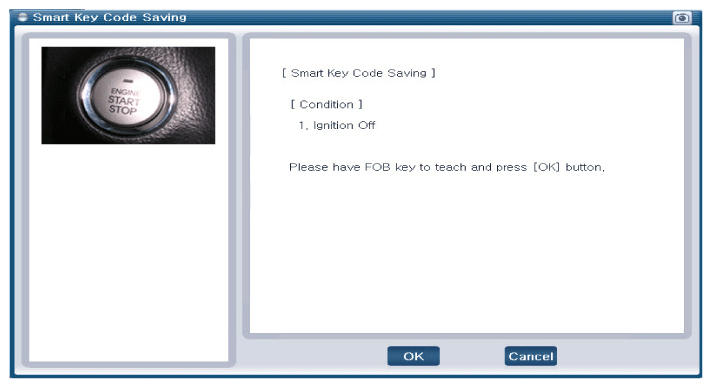

After having the teaching smart key, push "ENTER" key.

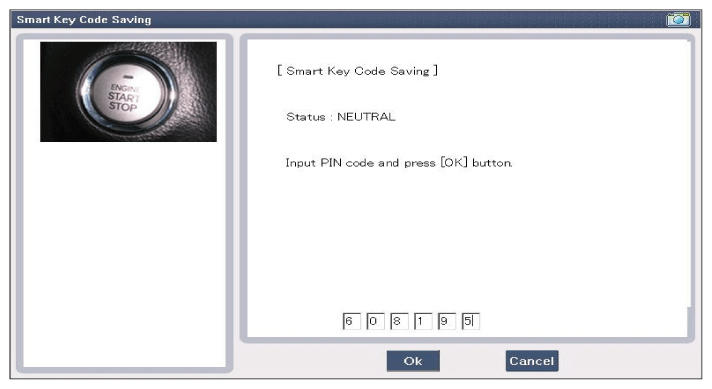

Input the "Pin code" for first key teaching.

Fig 5: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA

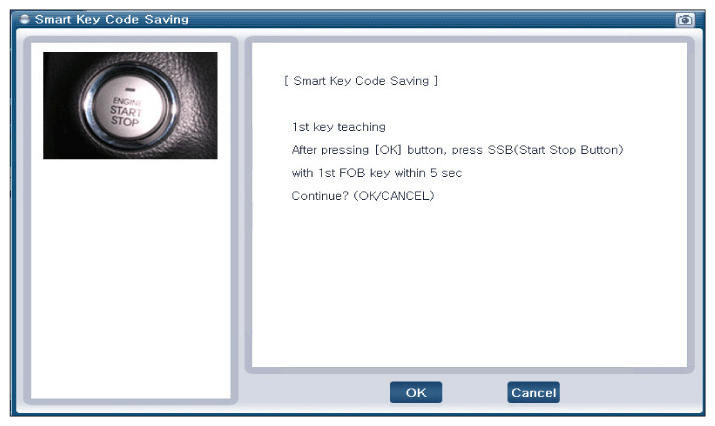

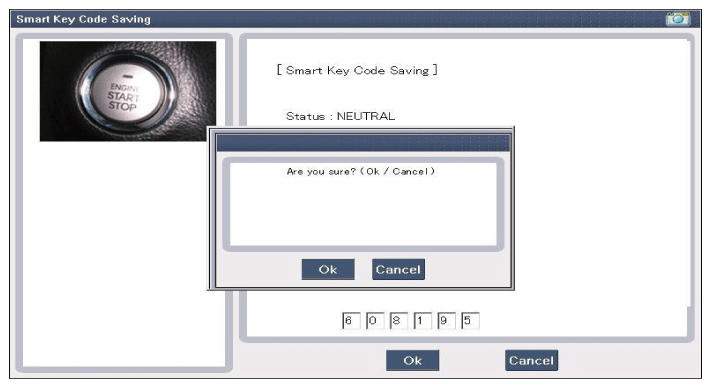

Fig 6: Display - Smart Key Code Saving Message Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 7: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

Fig 8: Display - First Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 9: Display - Pressing SSB Smart Key
Courtesy of HYUNDAI MOTOR AMERICA

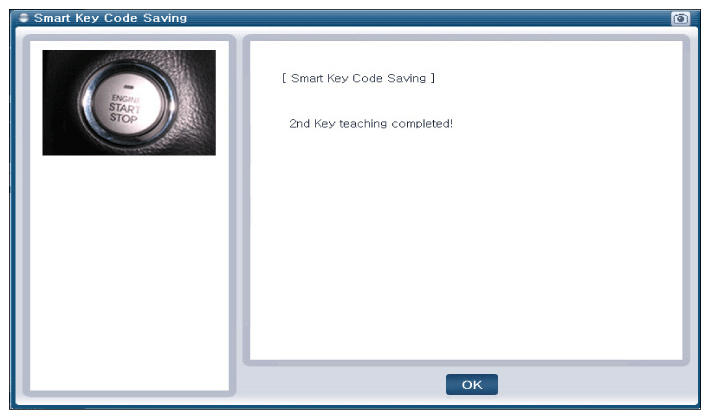

Confirm the message "Second key teaching completed".

Fig 10: Display - Second Key Teaching Completed Message Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

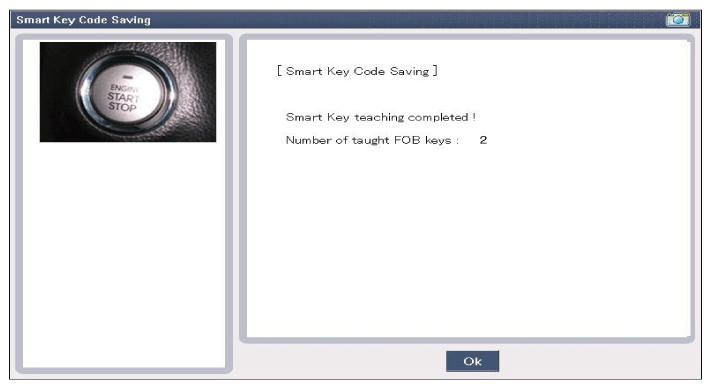

Then the screen will be shown as in Fig 11 when key teaching process is completed.

Fig 11: Display - Key Teaching Process Screen

Courtesy of HYUNDAI MOTOR AMERICA
