Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

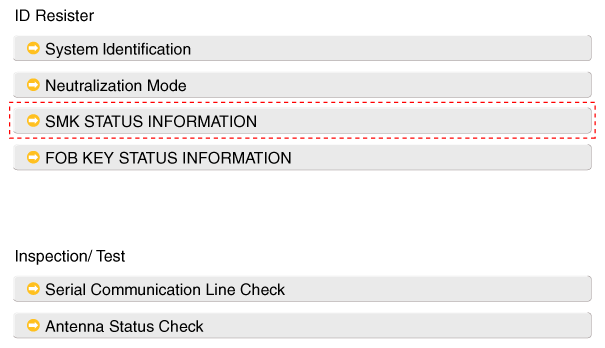

    Fig 1: Display - SMK Status Information Screen
    G10387006Courtesy of HYUNDAI MOTOR AMERICA

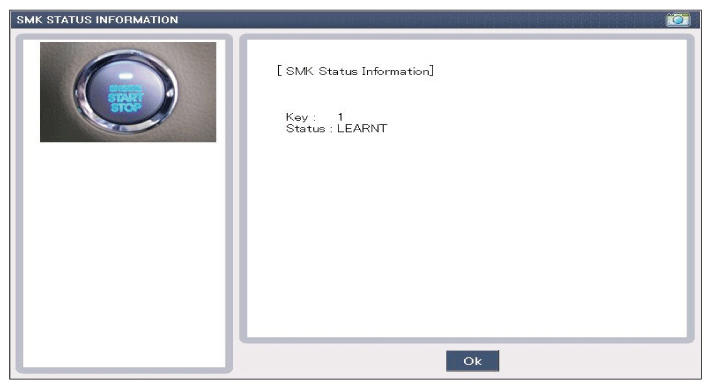

    Fig 2: Display - SMK Status Information Screen
    G10387007Courtesy of HYUNDAI MOTOR AMERICA
