Cruise/Trip Remote Control Switch Connector End View (M81-R)

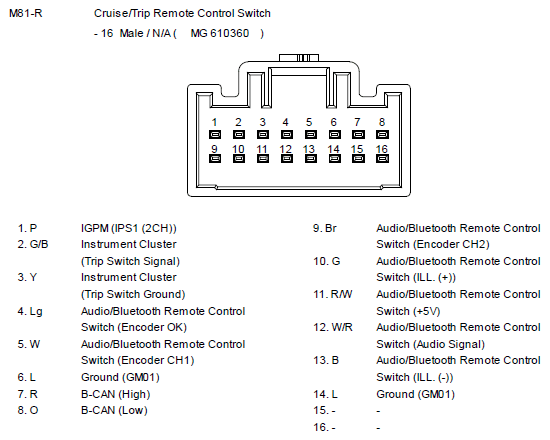

Fig 1: Cruise/Trip Remote Control Switch Connector End View (M81-R)
Courtesy of HYUNDAI MOTOR AMERICA
