Steering Wheel Heated Module Connector End View (M82-R)

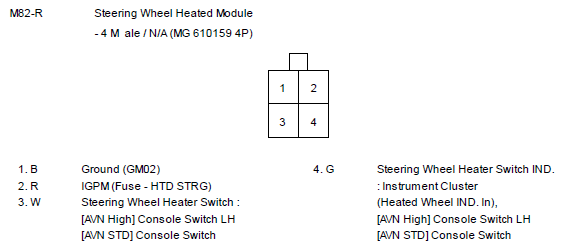

Fig 1: Steering Wheel Heated Module Connector End View (M82-R)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
