Circuit Diagram

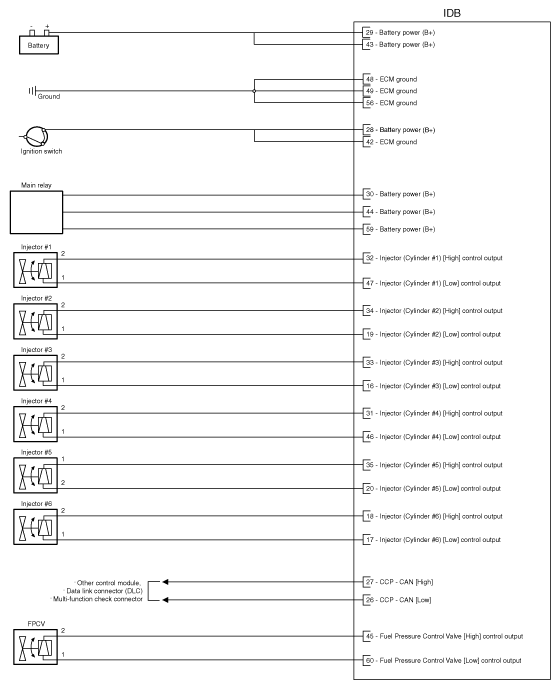

Fig 1: IDB Circuit Diagram (1 Of 2)
G10452185Courtesy of HYUNDAI MOTOR AMERICA

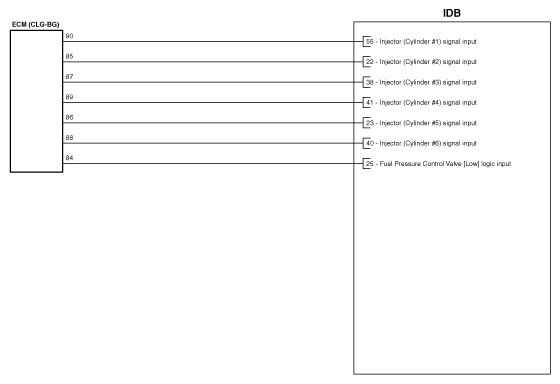

Fig 2: IDB Circuit Diagram (2 Of 2)
G10452186Courtesy of HYUNDAI MOTOR AMERICA
