IGPM Connector End View (I/P-I)

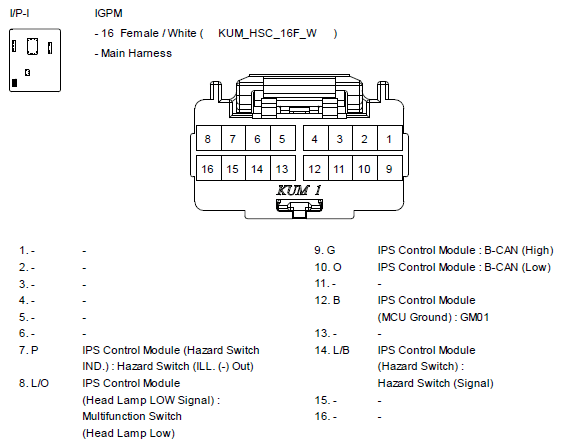

Fig 1: IGPM Connector End View (I/P-I)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
