Circuit Diagram

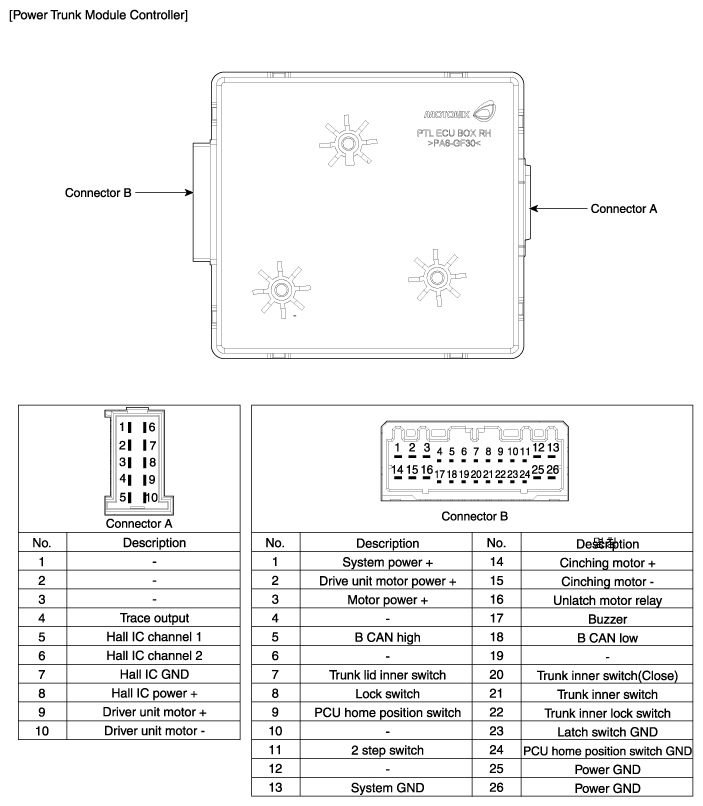

Fig 1: Power Trunk Module Drive Unit And Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
