Smart Key Control Module Connector End View (M06-B)

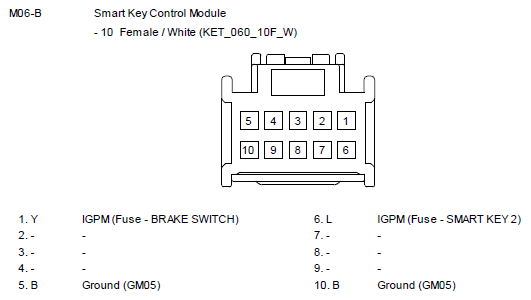

Fig 1: Smart Key Control Module Connector End View (M06-B)
G10790520Courtesy of HYUNDAI MOTOR AMERICA
