Engine Control System - 3.8L
>>
CVVT Oil Temperature Sensor - OTS
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

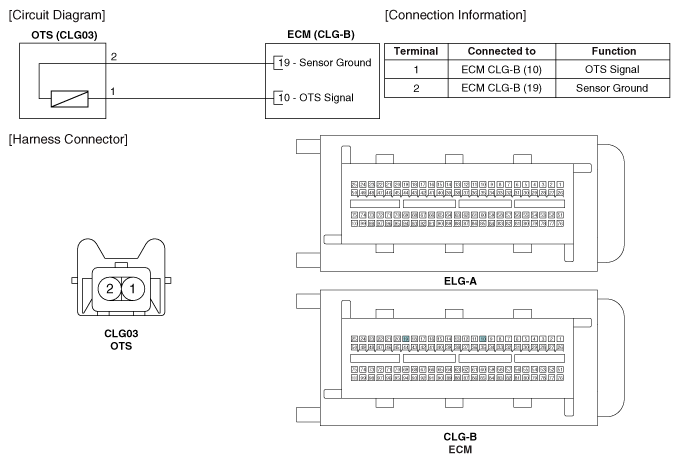

Fig 1: CVVT Oil Temperature Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
