Components and Components Location: Components

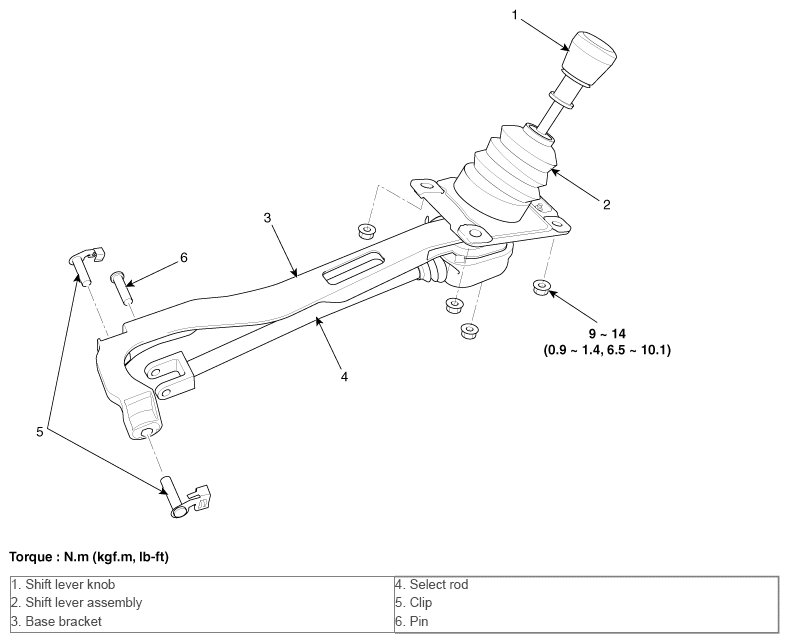

Fig 1: Shift Lever Components With Torque Specification
G10480453Courtesy of HYUNDAI MOTOR AMERICA
