Circuit Diagram

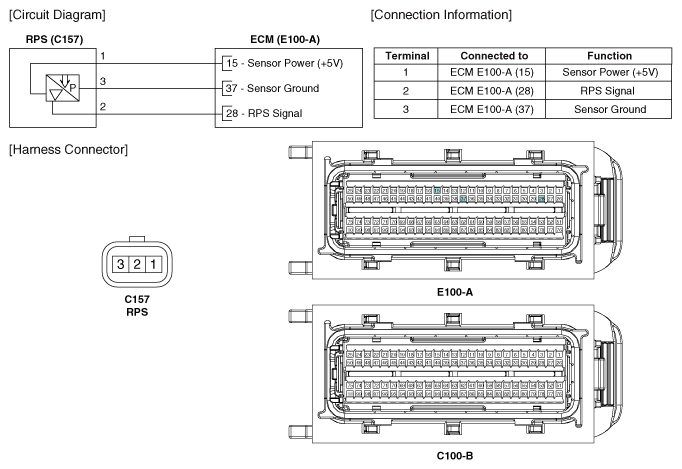

Fig 1: Rail Pressure Sensor - RPS - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
