Components Location

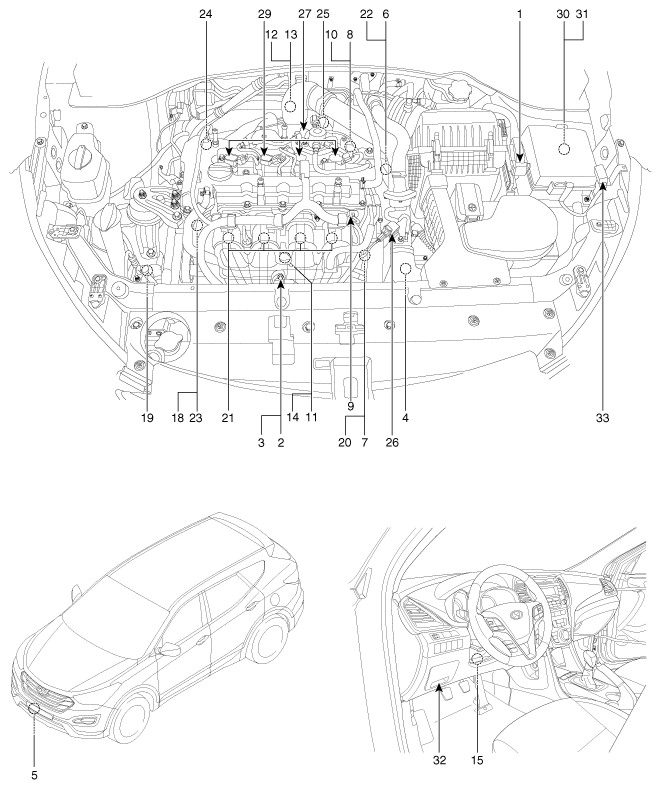

Fig 1: Identifying Engine Control System Related Components (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

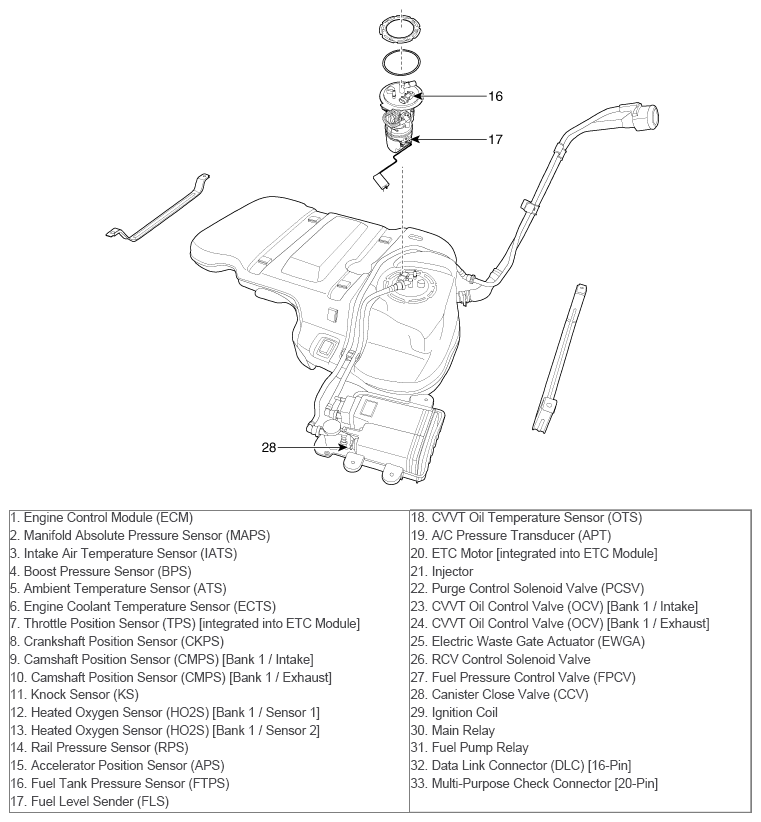

Fig 2: Identifying Engine Control System Related Components (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

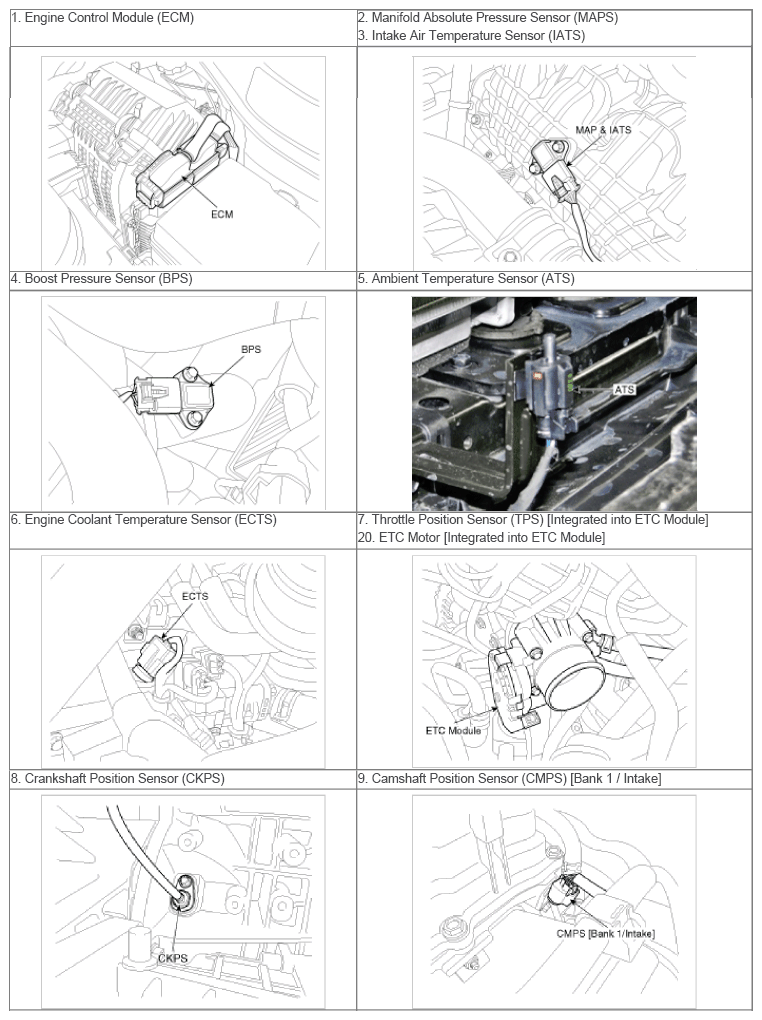

Fig 3: Identifying Engine Control System Related Components (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

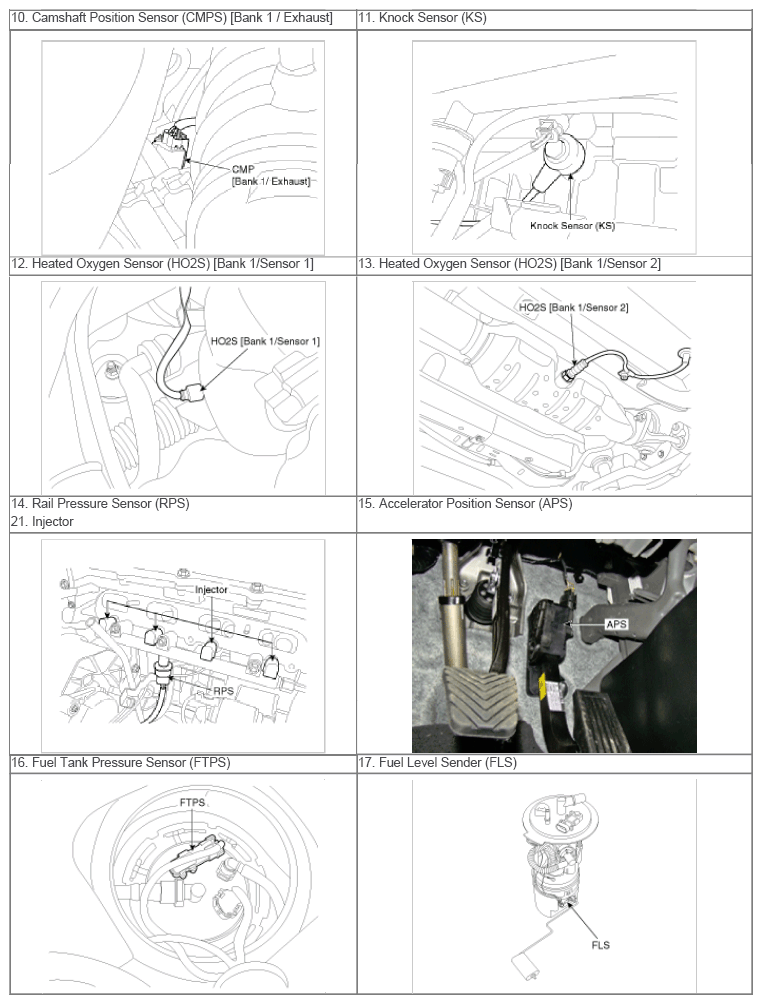

Fig 4: Identifying Engine Control System Related Components (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

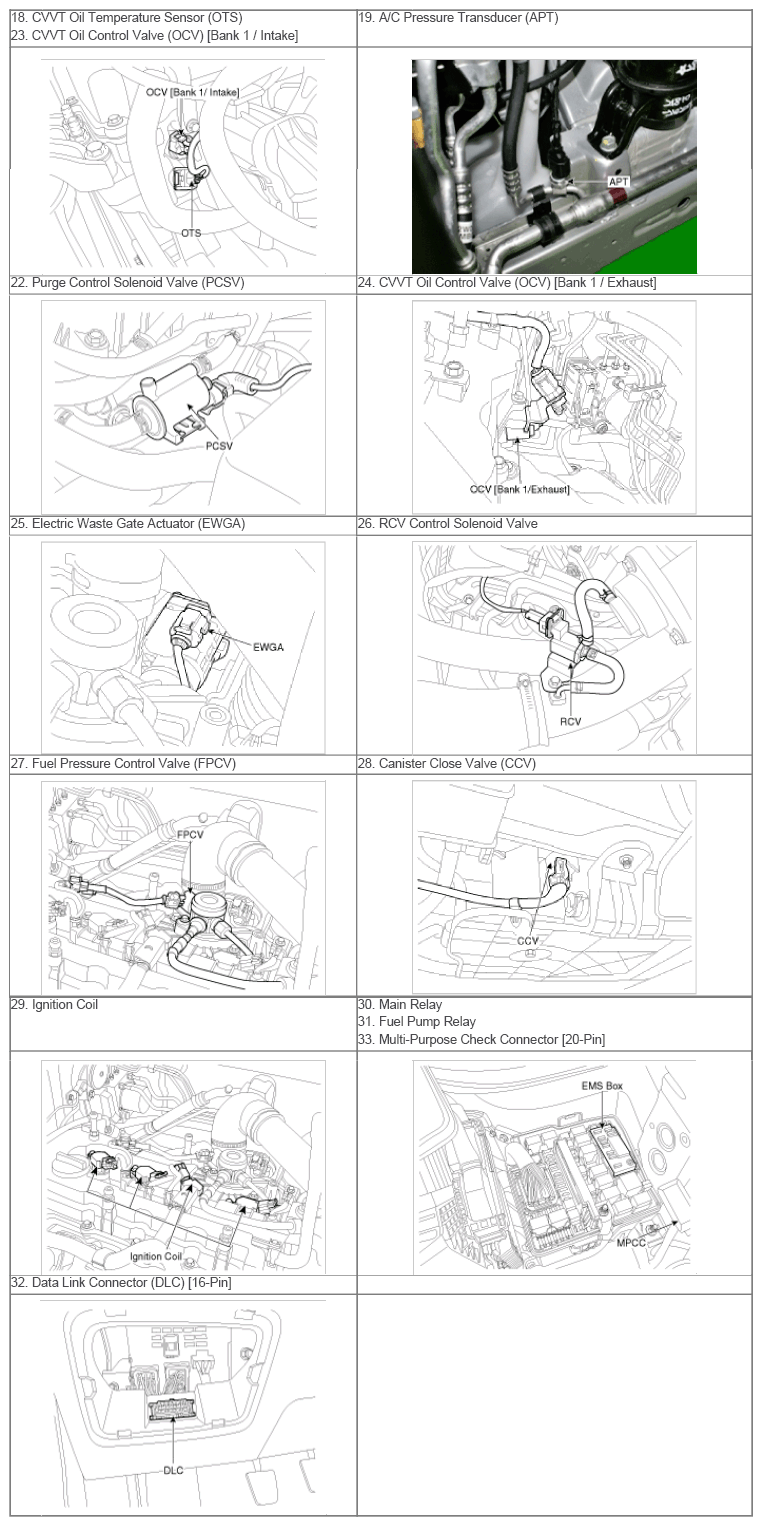

Fig 5: Identifying Engine Control System Related Components (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
