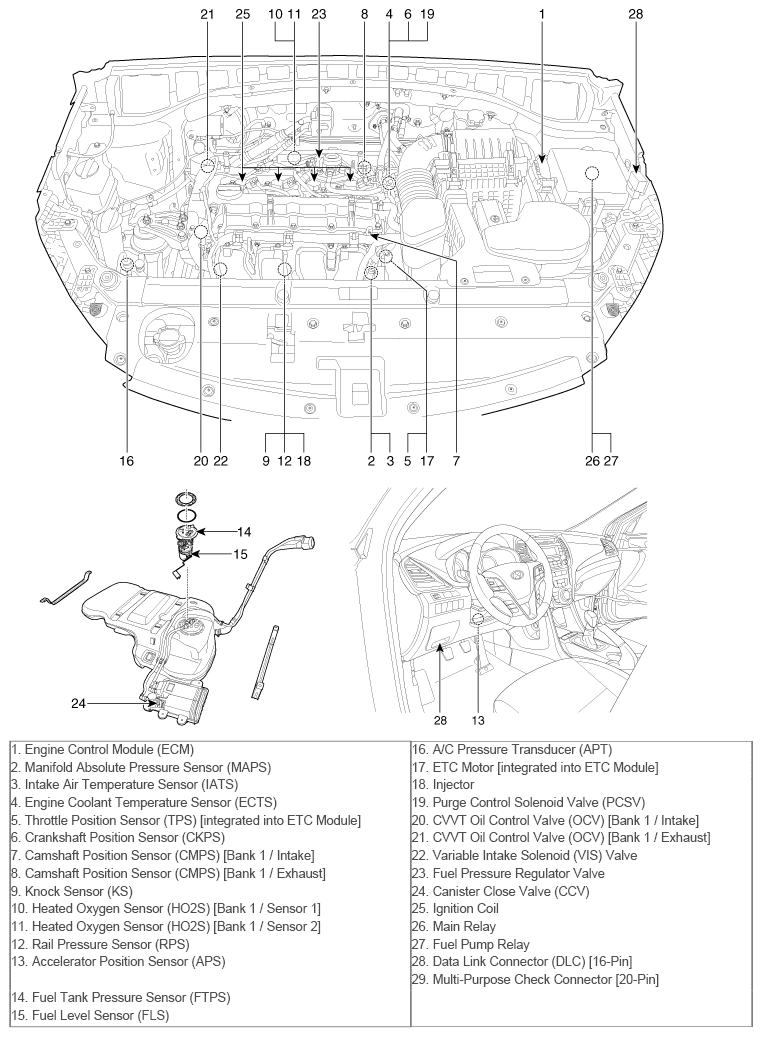

Components Location

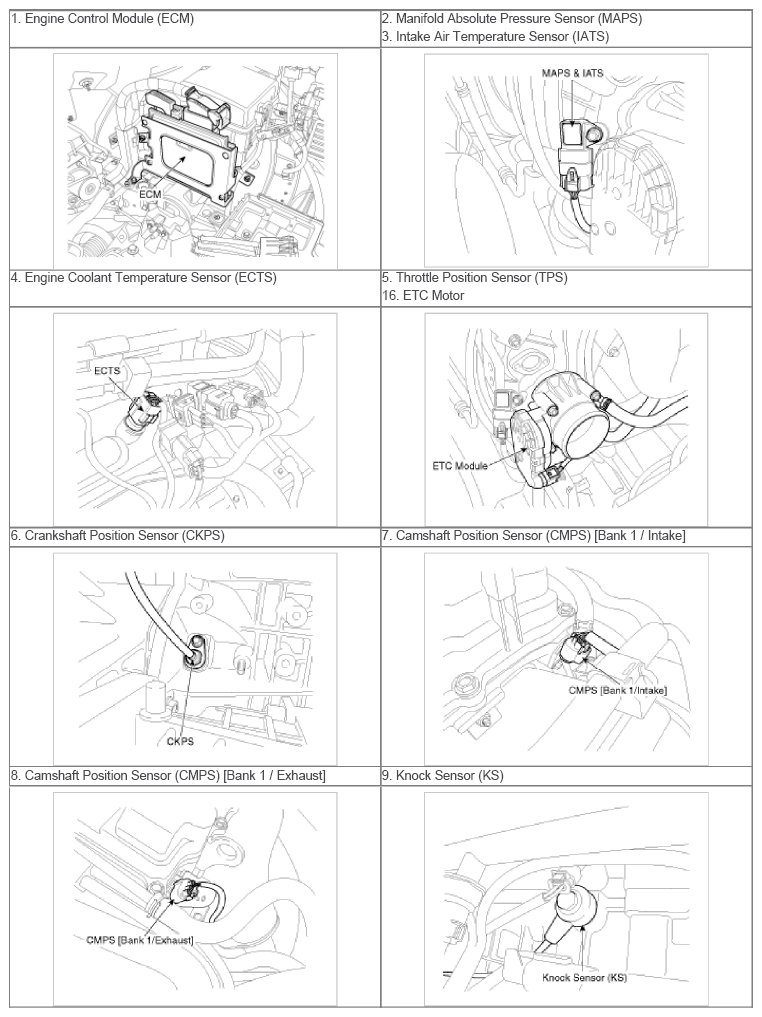

Fig 1: Identifying Manifold Absolute Pressure Sensor (MAPS)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Identifying Crankshaft Position Sensor (CKPS)

Courtesy of HYUNDAI MOTOR AMERICA

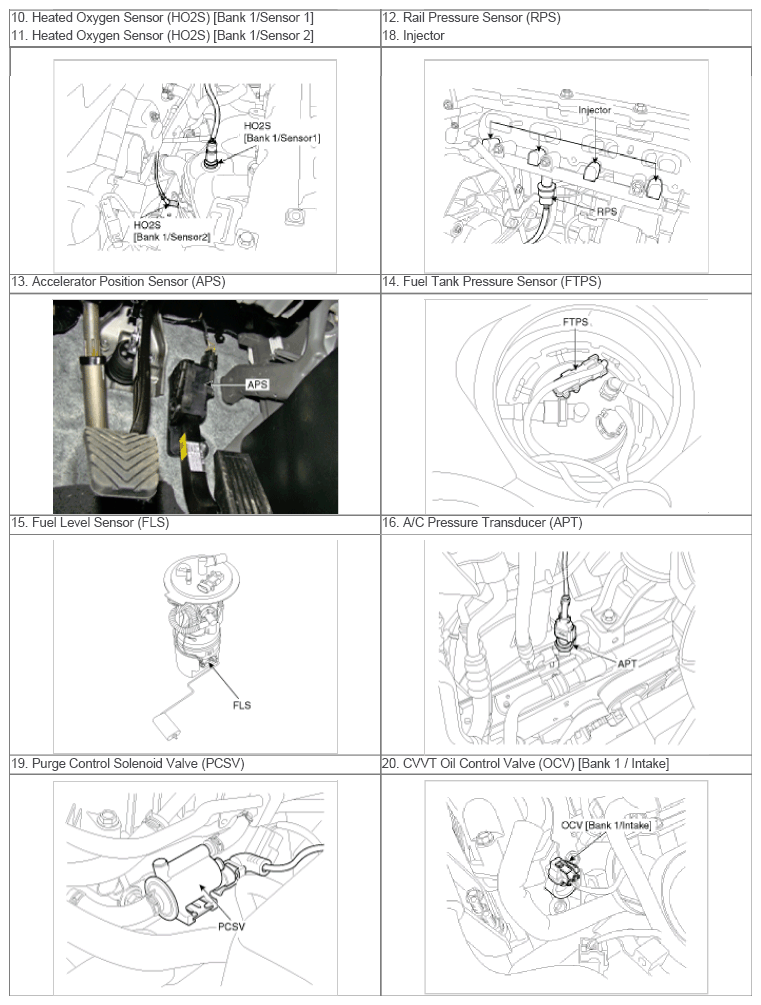

Fig 3: Identifying Fuel Level Sensor (FLS)

Courtesy of HYUNDAI MOTOR AMERICA

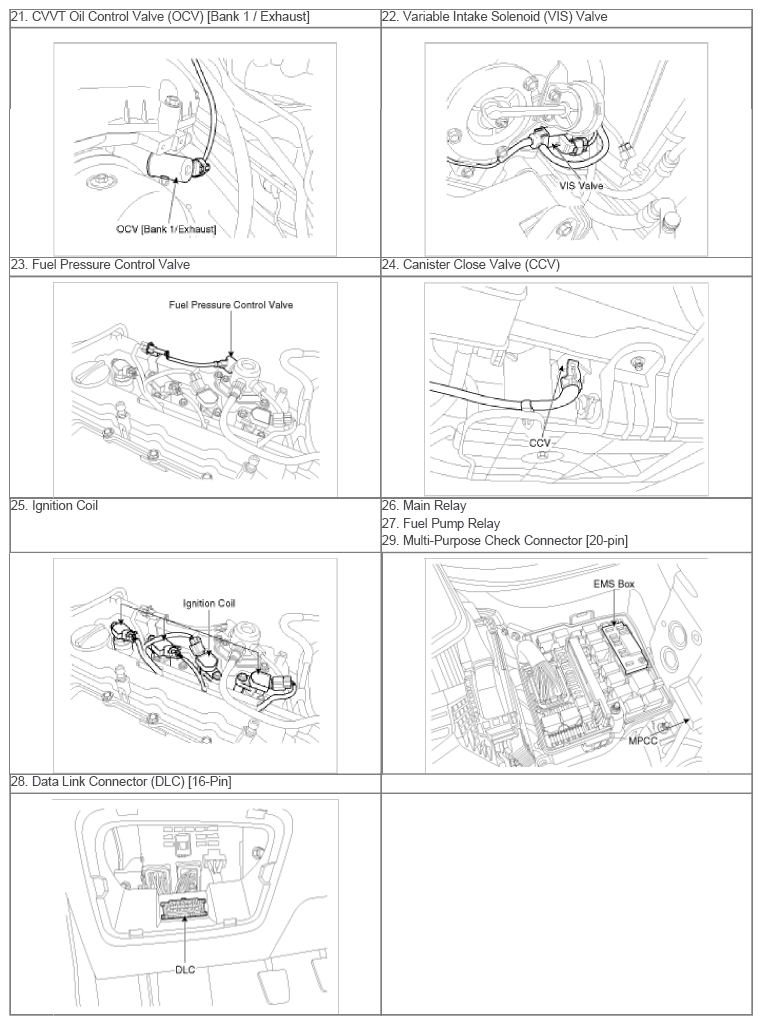

Fig 4: Identifying Ignition Coil

Courtesy of HYUNDAI MOTOR AMERICA
