Signal Waveform

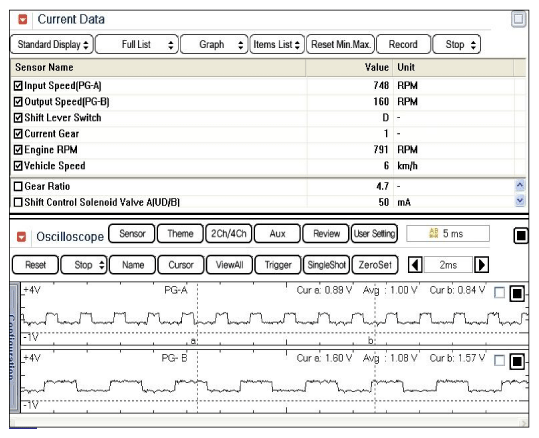

Fig 1: Screen Display - Current Data And Oscilloscope Signal Waveform (1 Of 2)
G10583001Courtesy of HYUNDAI MOTOR AMERICA

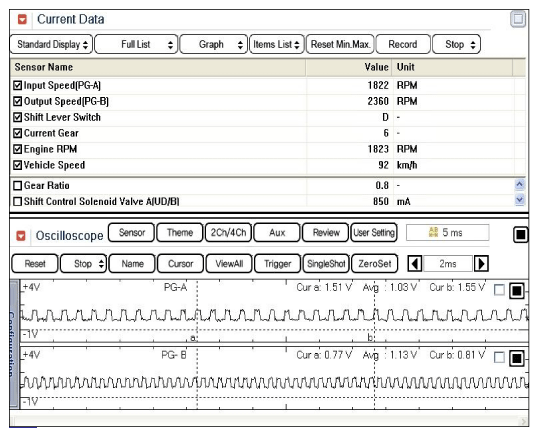

Fig 2: Screen Display - Current Data And Oscilloscope Signal Waveform (2 Of 2)
G10583002Courtesy of HYUNDAI MOTOR AMERICA
