Repair Procedures: Removal

Remove the Floor Console.
(Refer to: Body-"FLOOR CONSOLE ").
Remove the air duct.
Disconnect sports mode connector (A).

Fig 1: Locating Sports Mode Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the shift cable (A).

Fig 2: Locating Shift Cable
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift lever assembly (A) by removing the bolts (C-4EA).
Tightening Torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

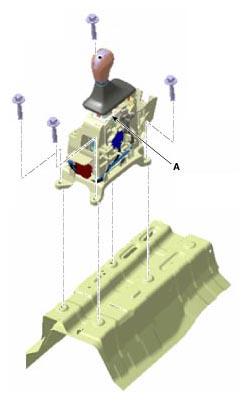

Fig 3: Removing Shift Lever Assembly Bolts
Courtesy of HYUNDAI MOTOR AMERICA
