Hyundai
>>
2016
>>
Santa Fe Sport Base, FWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Starter
>>
Button Engine Start System
>>
Button Engine Start System
>>
Schematic Diagrams
>>
Circuit Diagram (1)
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram (1): Notes

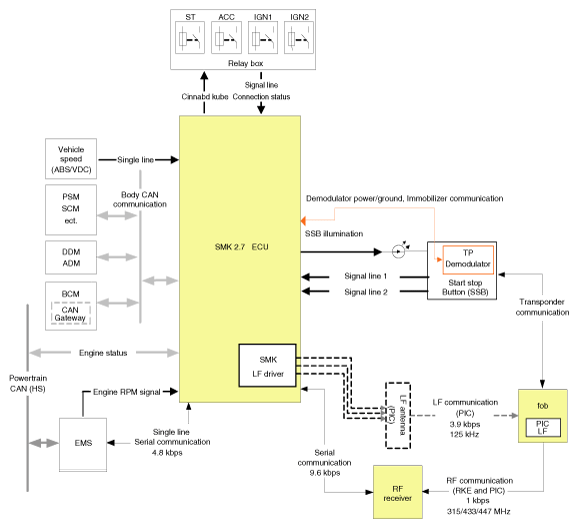

Fig 1: Button Engine Start System Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
