Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Data Link Connector (16 Pins)
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

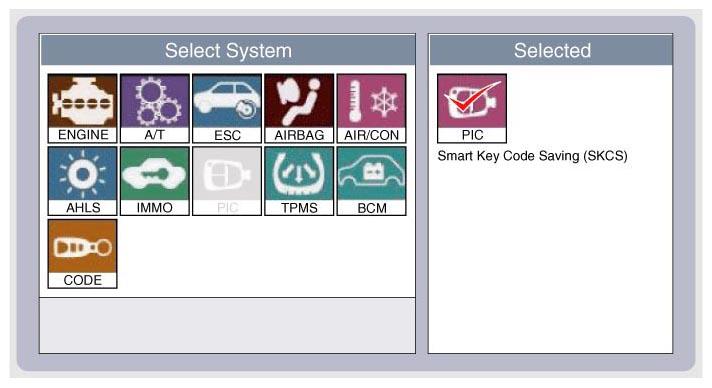

Fig 2: Screen Display - Smart Key Code Saving (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

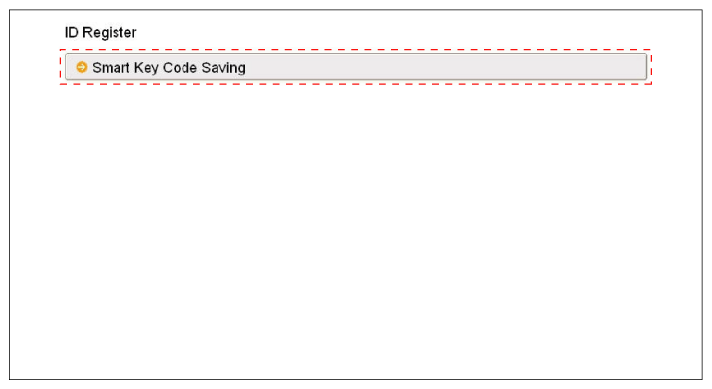

Fig 3: Screen Display - Smart Key Code Saving (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be as shown in illustration below.

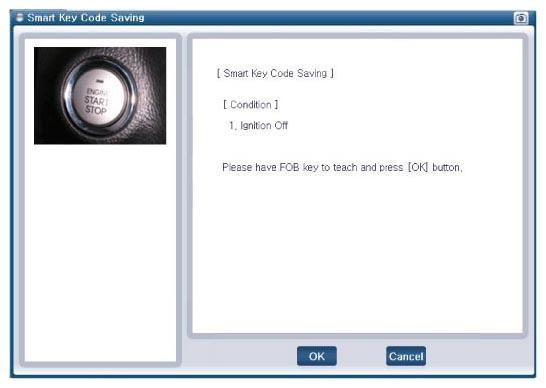

Fig 4: Screen Display - Smart Key Teaching
Courtesy of HYUNDAI MOTOR AMERICA
After having the teaching smart key, push "ENTER" key.
Input the "Pin code" for first key teaching.

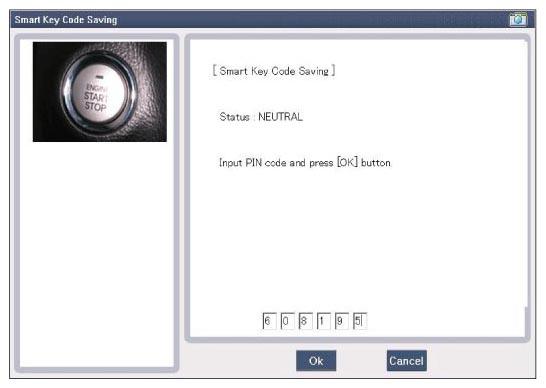

Fig 5: Screen Display - Entering Pin Code (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

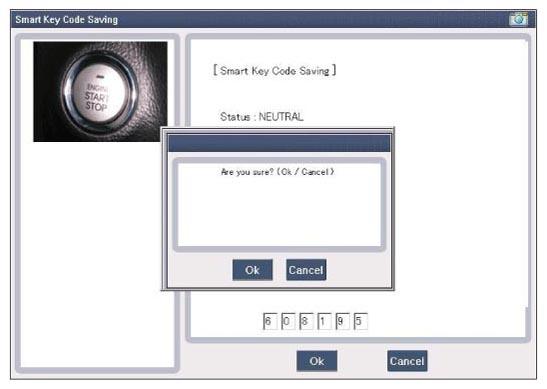

Fig 6: Screen Display - Entering Pin Code (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

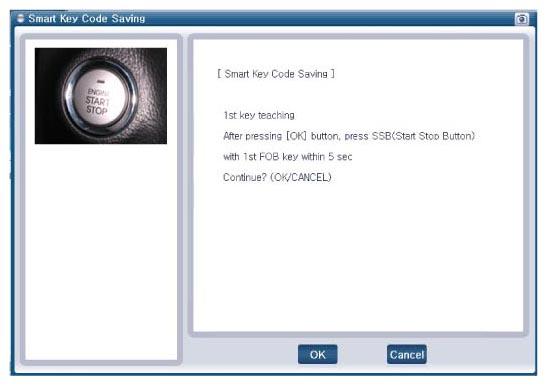

Press the SSB with smart key within 5 sec after pressing "OK".

Fig 7: Screen Display - Press Start Stop Button
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

Fig 8: Screen Display - First Key Teaching Completed (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

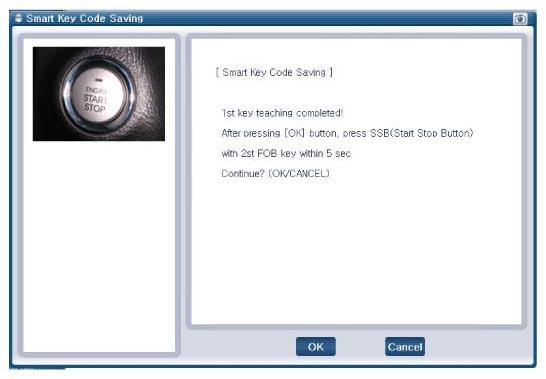

Fig 9: Screen Display - First Key Teaching Completed (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

Fig 10: Screen Display - Second Key Teaching Completed (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be as shown in illustration below when key teaching process is completed.

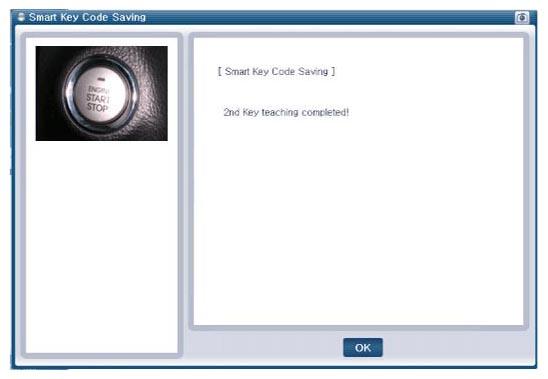

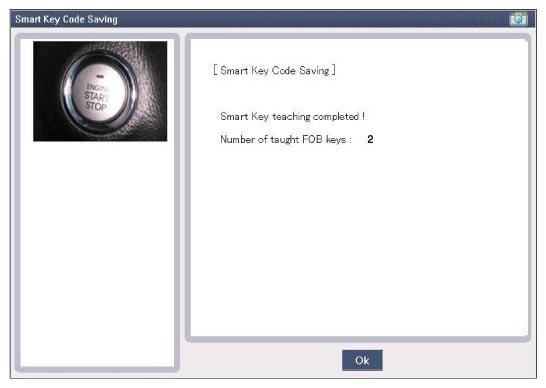

Fig 11: Screen Display - Second Key Teaching Completed (2 Of 2)
