Signal Waveform & Data

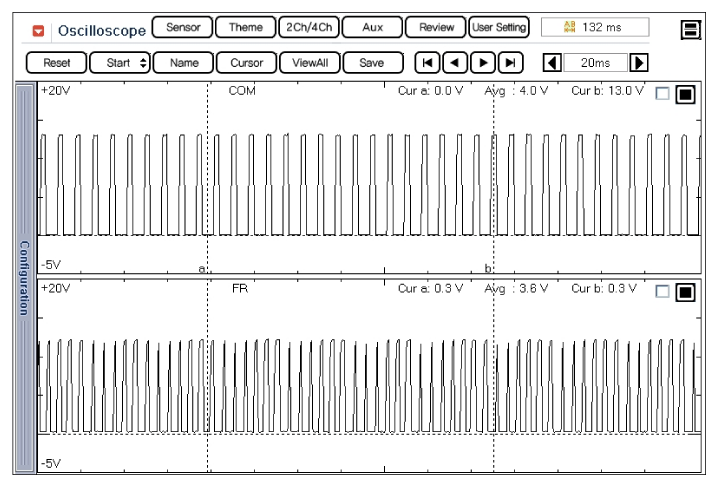

Fig 1: Screen Display - Normal Waveforms Of COM, FR terminal Of Alternator At Idle
G10580652Courtesy of HYUNDAI MOTOR AMERICA

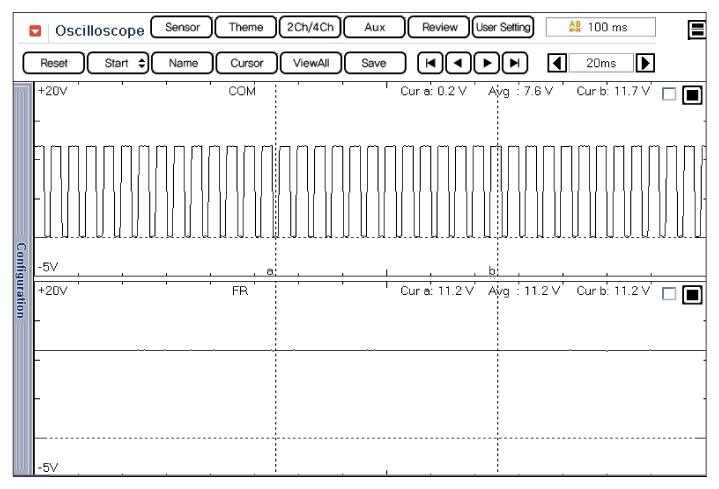

Fig 2: Screen Display - Normal Waveforms Of COM, FR terminal Of Alternator With Connector Disconnected Condition At IG ON
G10580654Courtesy of HYUNDAI MOTOR AMERICA
