Components and Components Location: Components

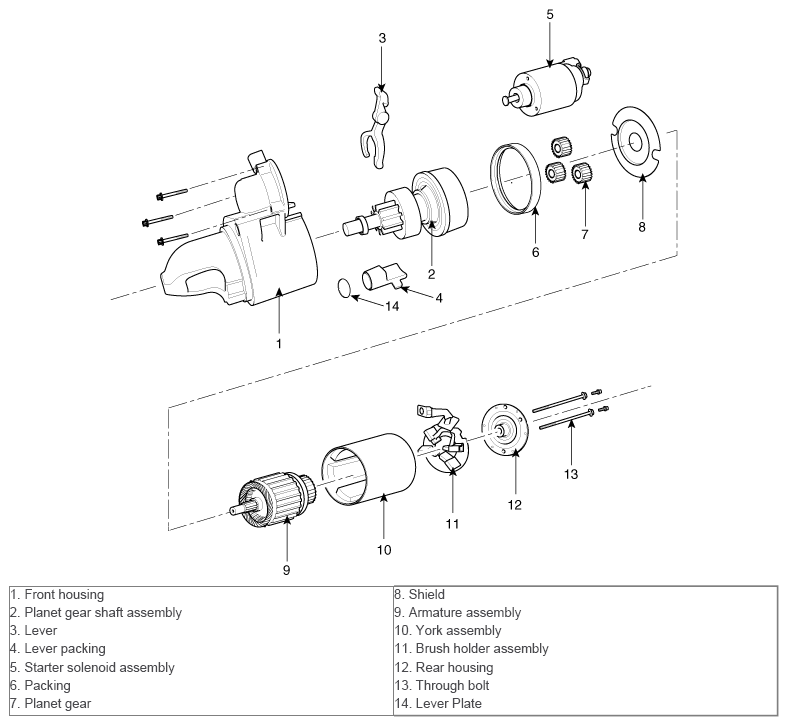

Fig 1: Starting System Components
G10574728Courtesy of HYUNDAI MOTOR AMERICA
