Signal Waveform & Data

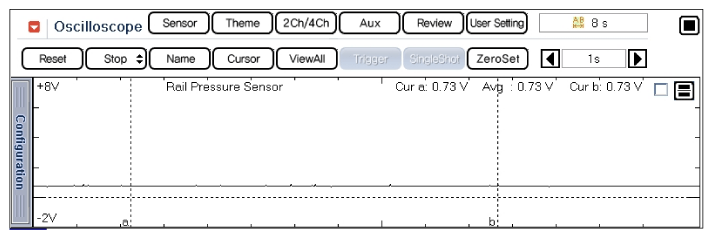

Fig 1: Screen Display - Normal Waveform Of Rail Pressure Sensor At Idle
G10580264Courtesy of HYUNDAI MOTOR AMERICA

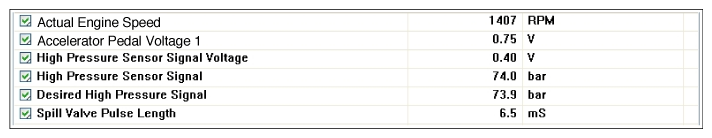

Fig 2: Screen Display - High Pressure Sensor Signal
G10580265Courtesy of HYUNDAI MOTOR AMERICA

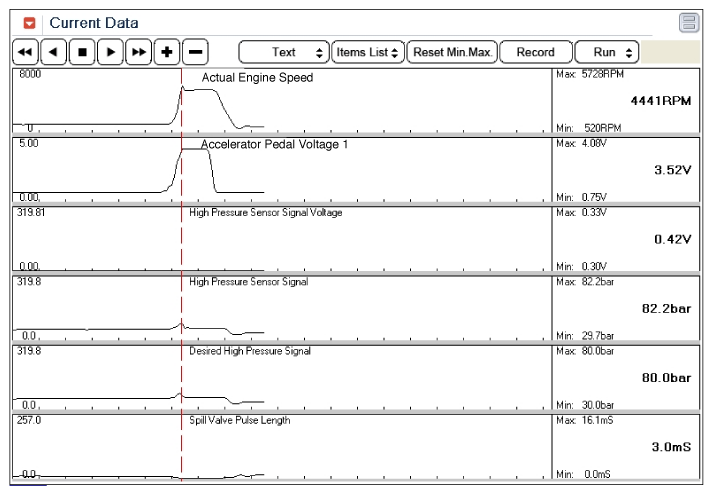

Fig 3: Screen Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G10580266Courtesy of HYUNDAI MOTOR AMERICA
