Component Location

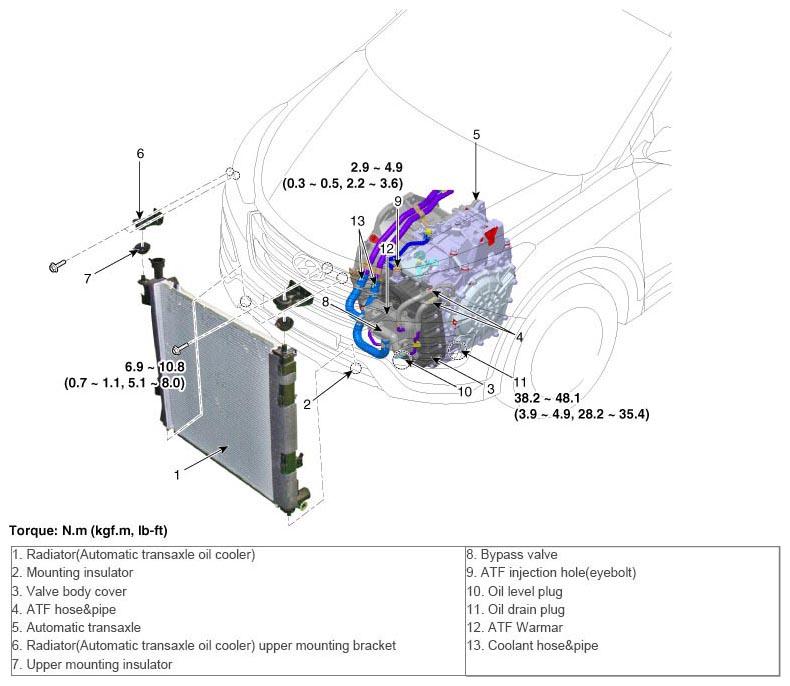

Fig 1: External Hydraulic System Components With Toque Specifications
G10575085Courtesy of HYUNDAI MOTOR AMERICA

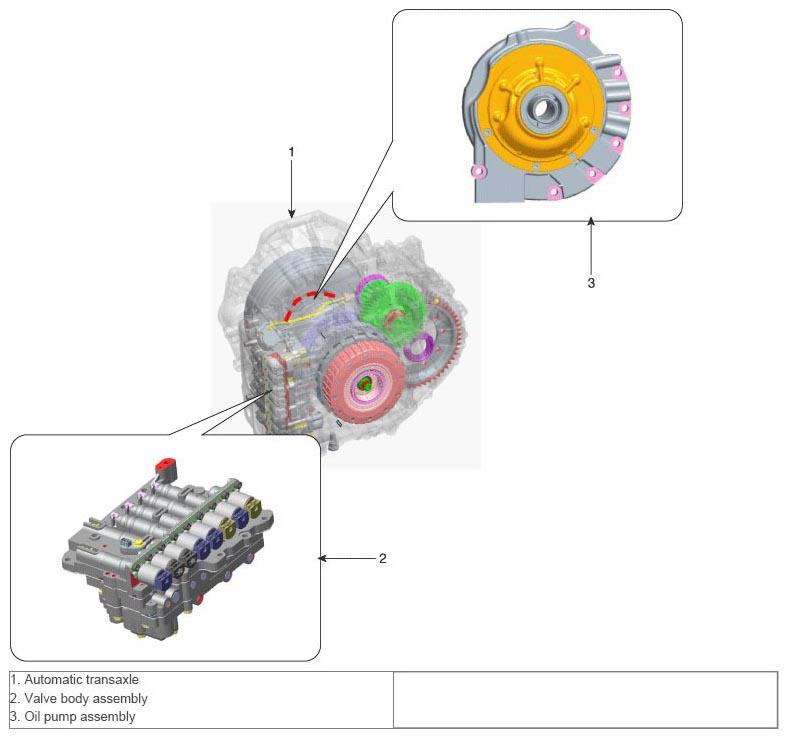

Fig 2: Internal Hydraulic System Components
G10575086Courtesy of HYUNDAI MOTOR AMERICA
