Component Location: Notes

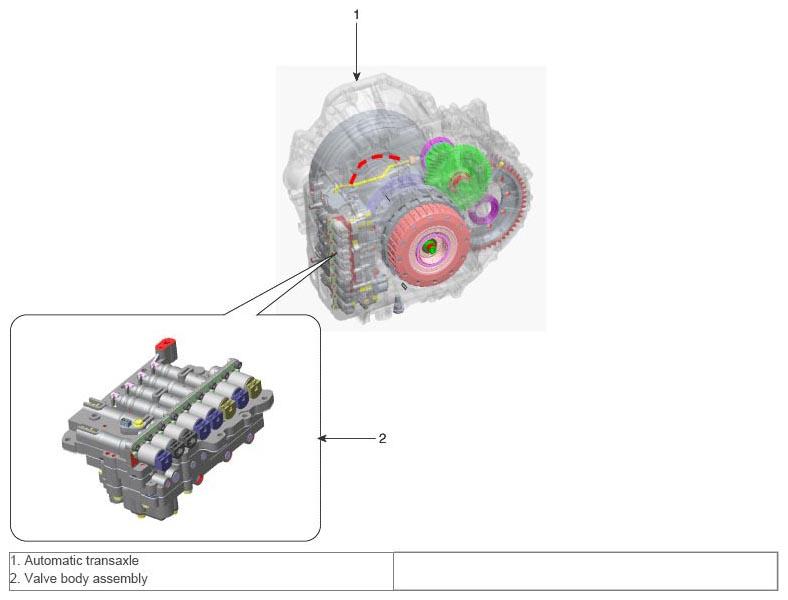

Fig 1: Valve Body Component Locations
G10575097Courtesy of HYUNDAI MOTOR AMERICA

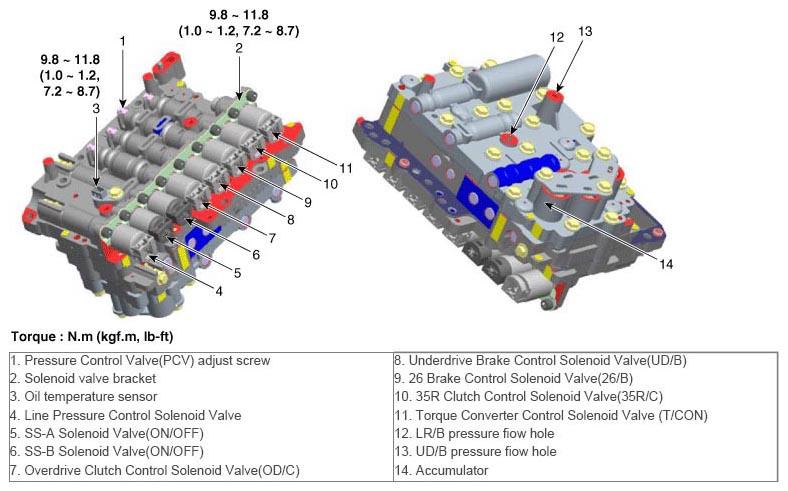

Fig 2: Valve Body Components With Torque Specifications
G10575098Courtesy of HYUNDAI MOTOR AMERICA
