Smart Cruise Control Unit Connector End View (E65)

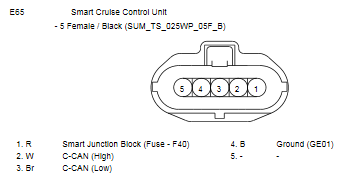

Fig 1: Smart Cruise Control Unit Connector End View (E65)
G10773082Courtesy of HYUNDAI MOTOR AMERICA
