A/C Control Module (Manual A/C) Connector End View (M04-A)

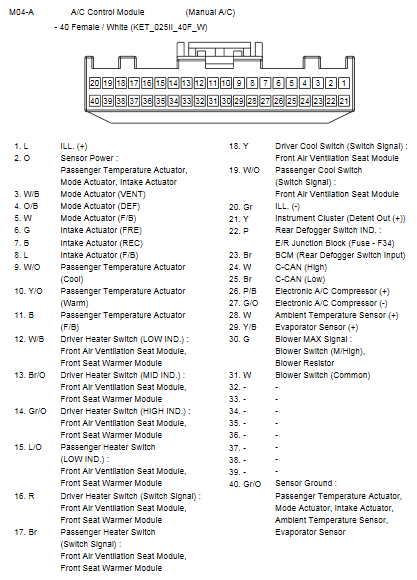

Fig 1: A/C Control Module (Manual A/C) Connector End View (M04-A)
G10772959Courtesy of HYUNDAI MOTOR AMERICA
