Clock Spring (Steering Wheel Remote Control Switch) Connector End View (M30-R)

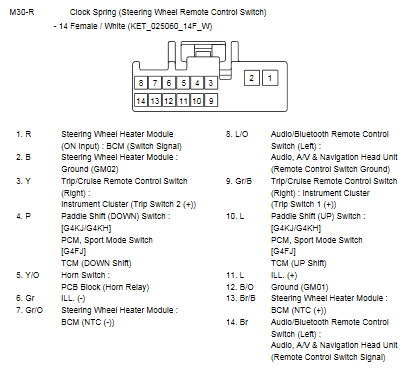

Fig 1: Clock Spring (Steering Wheel Remote Control Switch) Connector End View (M30-R)
G10772992Courtesy of HYUNDAI MOTOR AMERICA
