Circuit Diagram

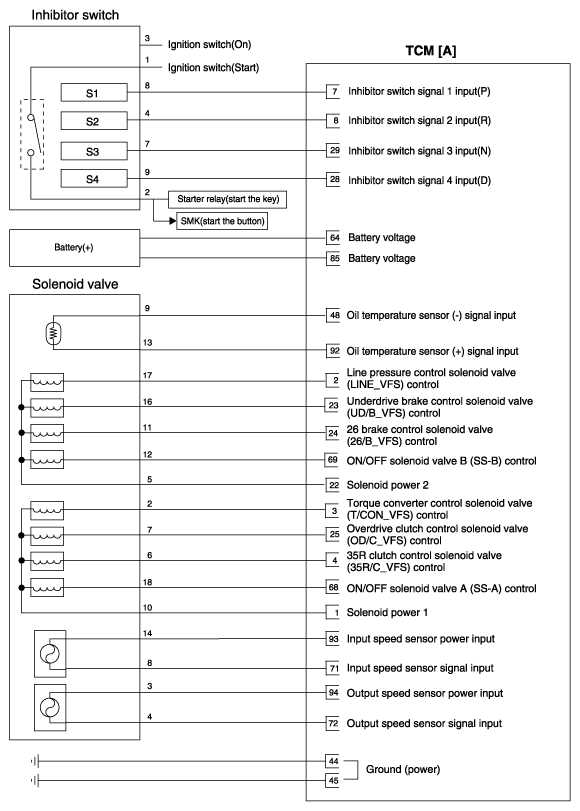

Fig 1: Transaxle Control Module (TCM) Circuit Diagram (1 Of 2)
G10571156Courtesy of HYUNDAI MOTOR AMERICA

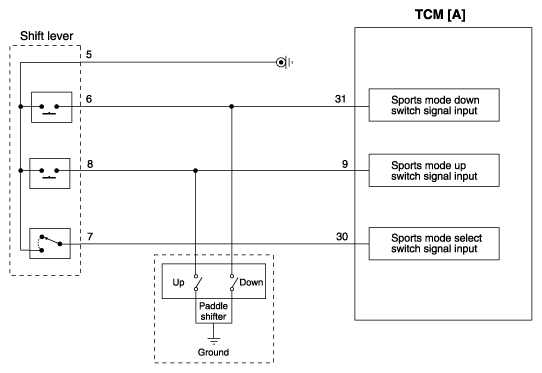

Fig 2: Transaxle Control Module (TCM) Circuit Diagram (2 Of 2)
G10571157Courtesy of HYUNDAI MOTOR AMERICA
