Cruise Control Systems
>>
Advanced Smart Cruise Control System (Except HEV)
>>
Advanced Smart Cruise Control (ASCC) ECU
>>
Schematic Diagrams
>>
Terminal Function
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Terminal Function

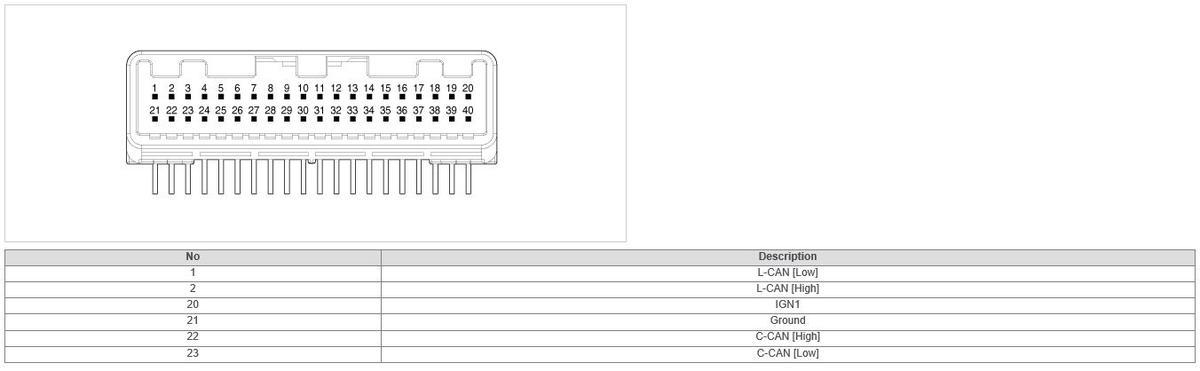

Fig 1: (ASCC) ECU - Terminal Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
