Components Location (1)

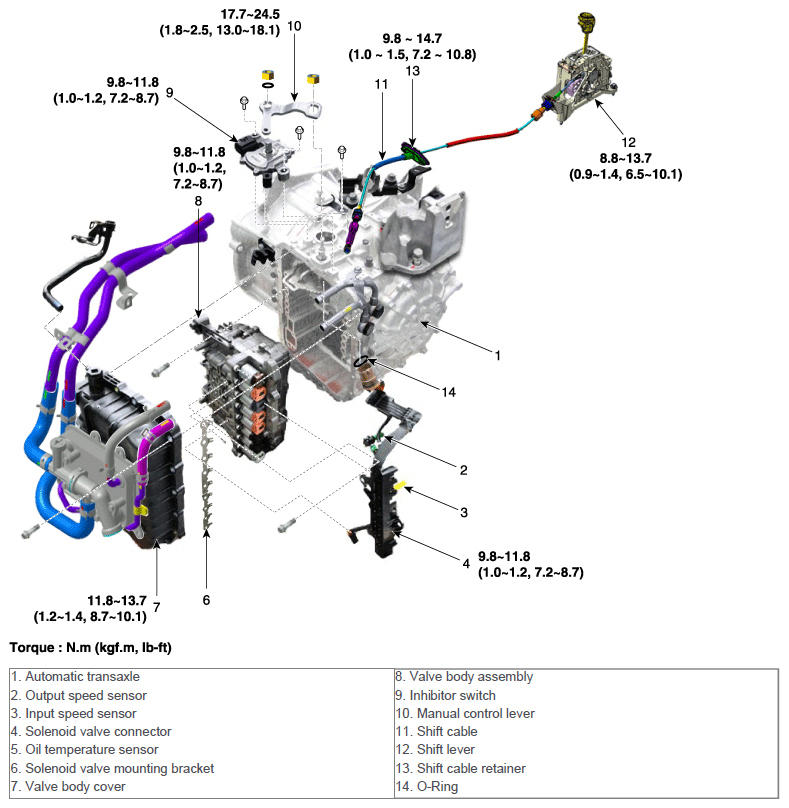

Fig 1: Automatic Transaxle System Related Components With Torque Specifications (1 Of 3)
G10571149Courtesy of HYUNDAI MOTOR AMERICA
