Components Location (2)

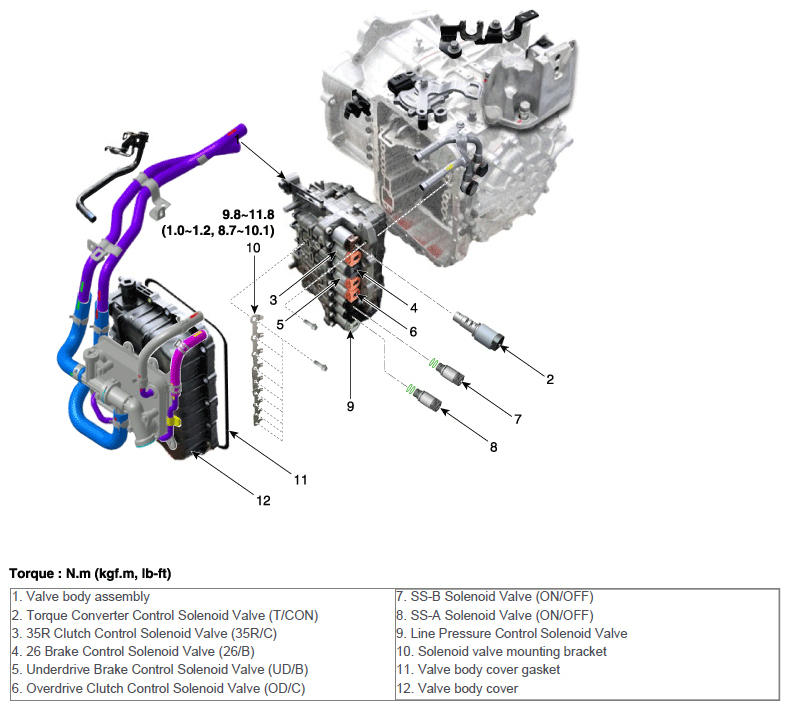

Fig 1: Automatic Transaxle System Related Components With Torque Specifications (2 Of 3)
G10571150Courtesy of HYUNDAI MOTOR AMERICA
