Repair Procedures: Installation

NOTE: After replacing the Electric EGR control valve, MUST perform the "Component Change Routine" procedure with GDS.
Otherwise trouble related with engine performance or emission control may occur until ECM learning about the component is over.
  1. Turn the ignition switch OFF.
  2. Connect the GDS to Data Link Connector (DLC).
  3. Turn ignition switch ON.
  4. Select "Vehicle, Model year, Engine, System".
  5. Select "Vehicle S/W Management".
  6. Select "Component Change Routine".
  7. Select "EGR Valve Change".
  8. Perform the procedure in accordance with the message

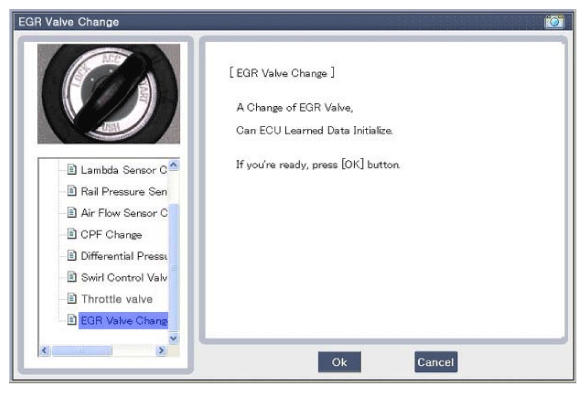

Fig 1: Screen Display - EGR Valve Change (1 Of 2)
G12060859Courtesy of HYUNDAI MOTOR AMERICA

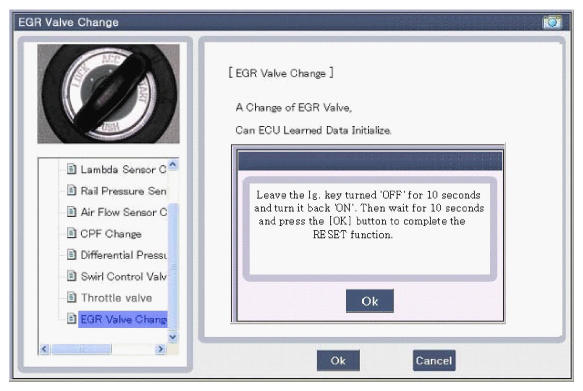

Fig 2: Screen Display - EGR Valve Change (2 Of 2)
G12060860Courtesy of HYUNDAI MOTOR AMERICA
