Repair Procedures: Installation
- Install in the reverse order of removal.
- Perform the procedures related in the ECM after replacing the TCM.
(Refer to "ENGINE CONTROL MODULE ")
- Perform the TCM adaptive values learning procedure.
(Refer to "REPAIR PROCEDURES ")
- Perform EOP oil flow deviation learning using the GDS
- Connect the VCI data cable to the self-diagnosis connector located at the lower section of the driver-side crash pad.
- Turn ON the engine and power up the VCI.

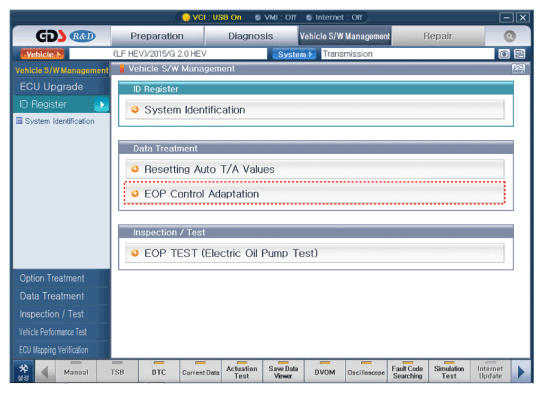

- Select the vehicle model from the GDS screen.

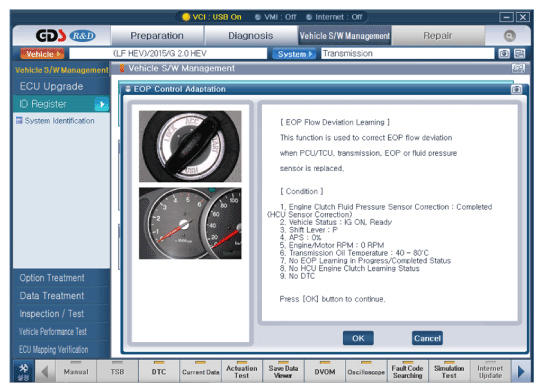

- Commence EOP flow deviation learning.
