Components Location

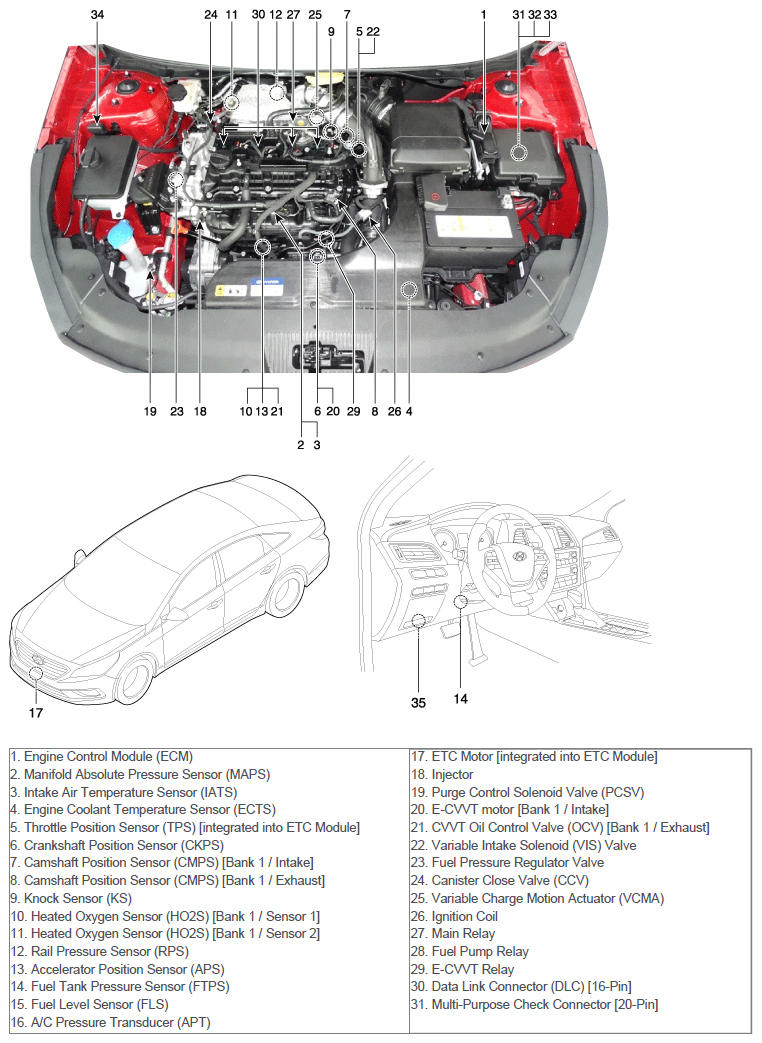

Fig 1: ECM Related Components Location (1 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

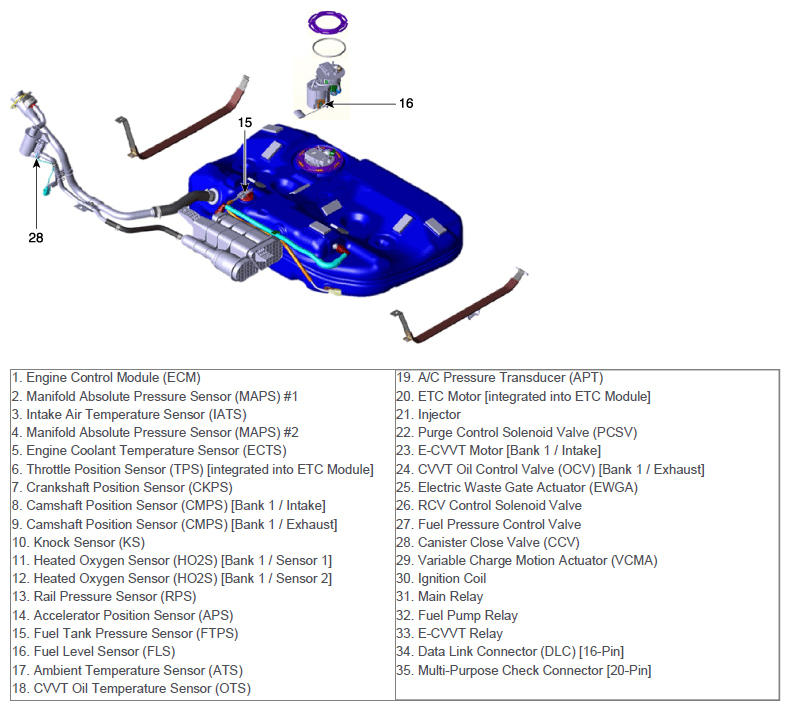

Fig 2: ECM Related Components Location (2 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

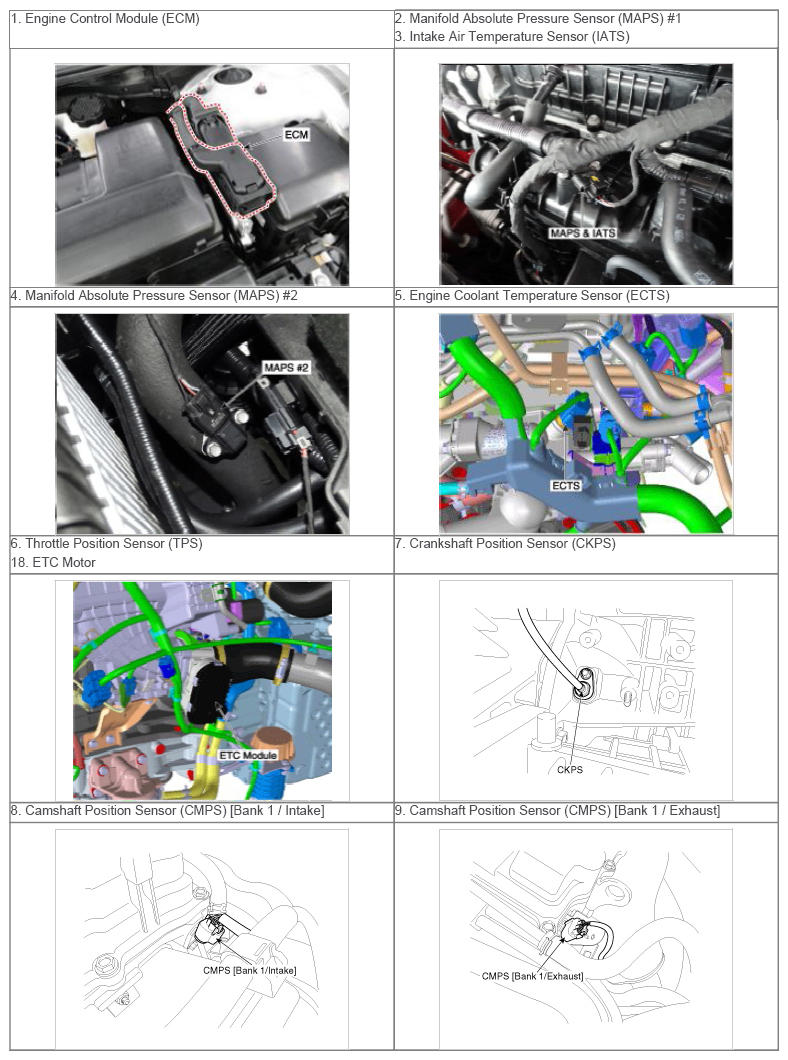

Fig 3: ECM Related Components Location (3 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

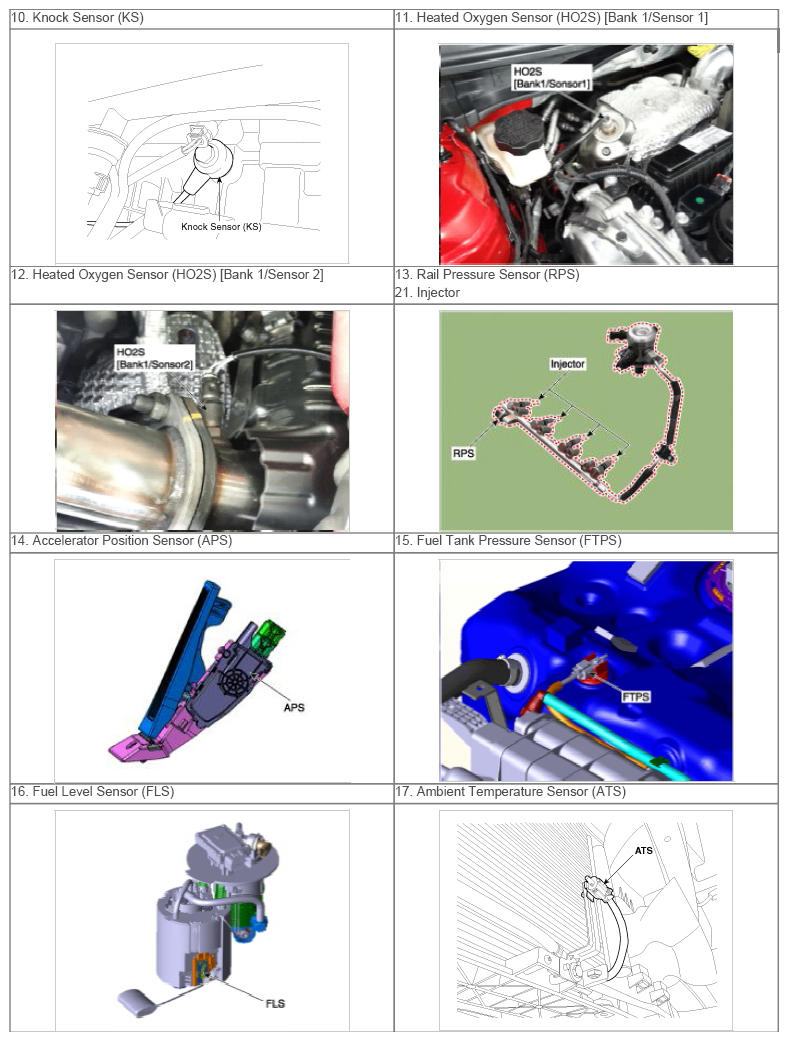

Fig 4: ECM Related Components Location (4 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

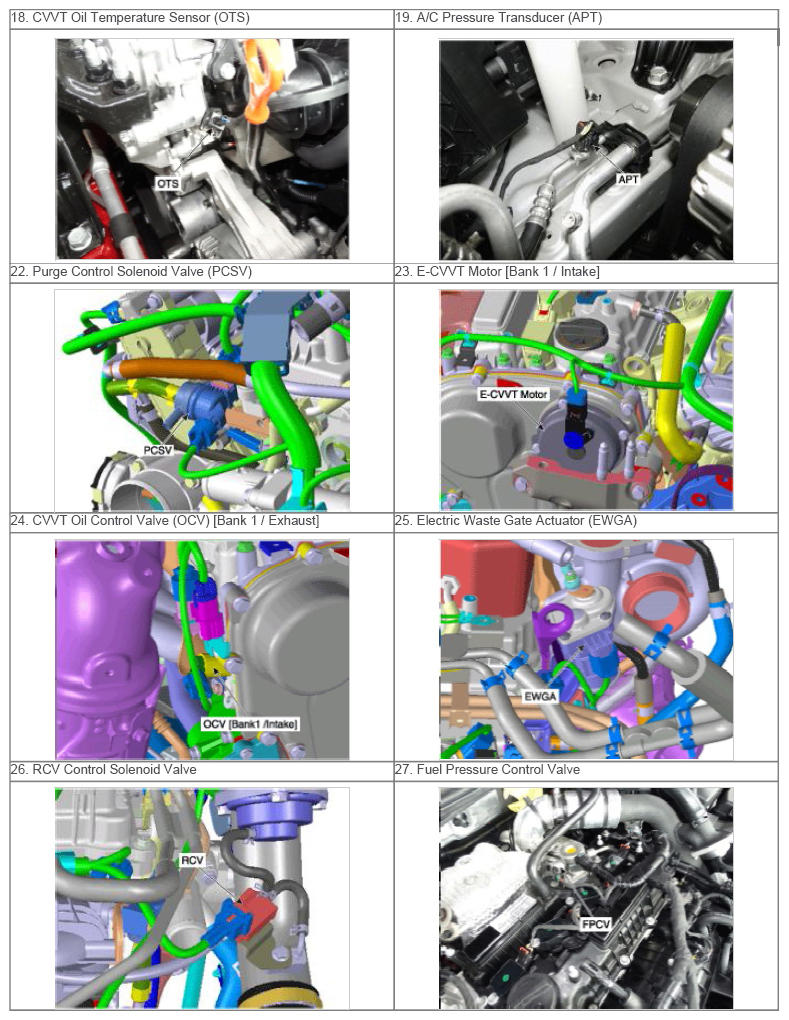

Fig 5: ECM Related Components Location (5 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

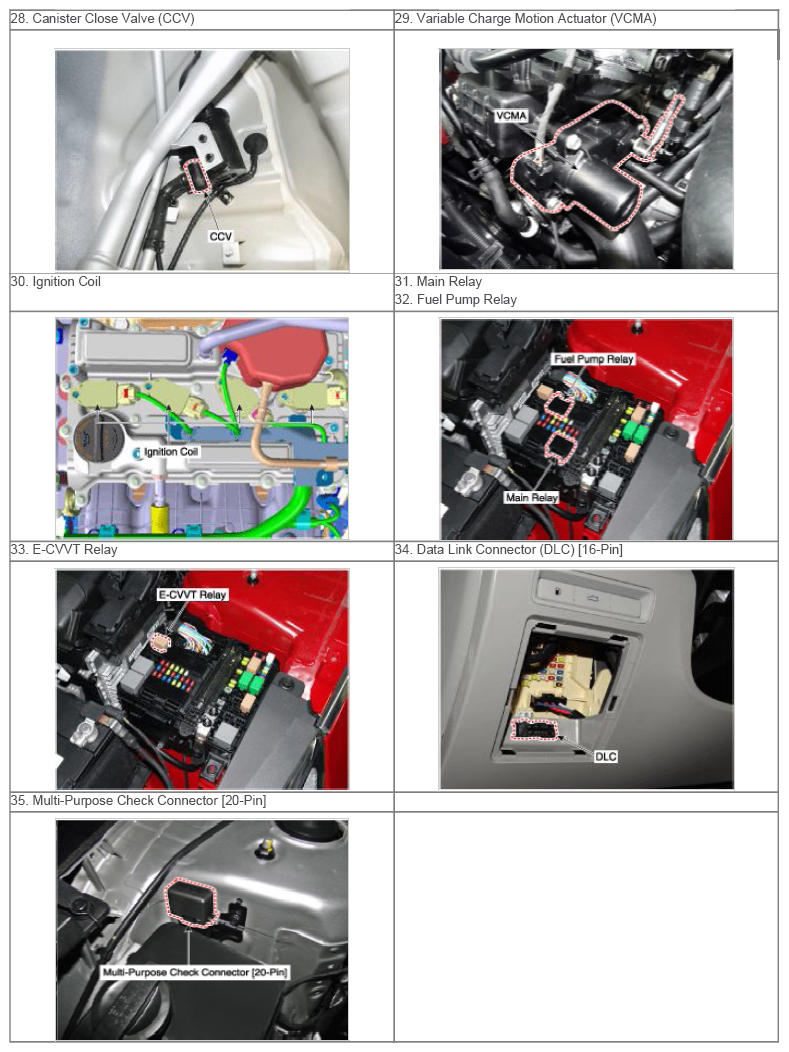

Fig 6: ECM Related Components Location (6 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
