Circuit Diagram

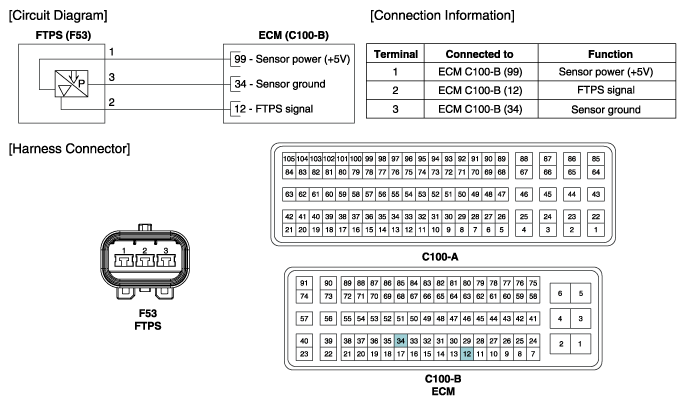

Fig 1: Fuel Tank Pressure Sensor Schematic Diagrams And Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
