Circuit Diagram

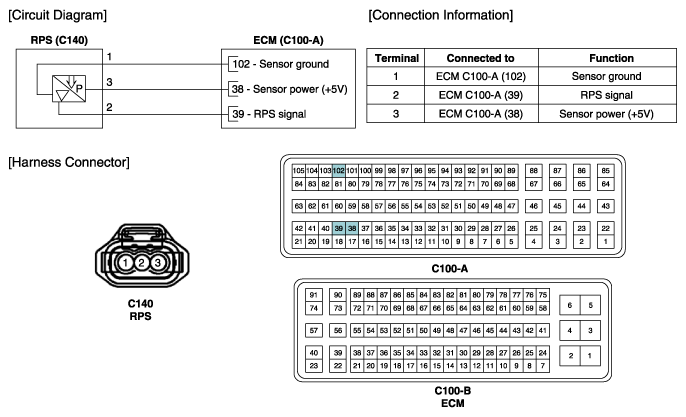

Fig 1: Rail Pressure Sensor Schematic Diagrams and Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
