Smart Key Code Saving

WARNING: This page is about a different variant/trim than selected.

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA

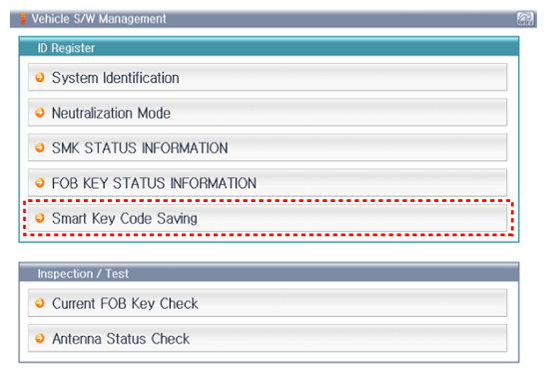

Select the vehicle model and then do "Smart Key Code Saving".

Fig 2: Screen Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA

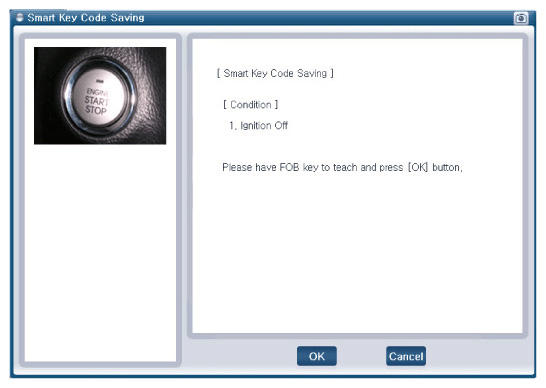

After selecting "Smart Key Teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 3: Screen Display - Smart Key Teaching
Courtesy of HYUNDAI MOTOR AMERICA
After having the teaching smart key, push "ENTER" key.

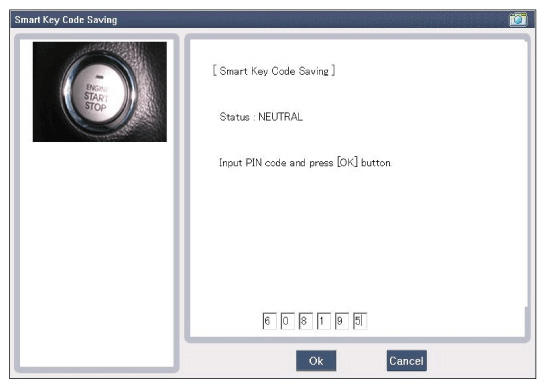

Input the "Pin Code" for first key teaching.

Fig 4: Screen Display - Input Pin Code For First Key Teaching (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

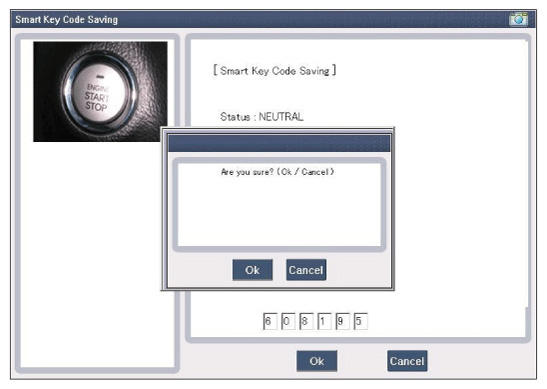

Fig 5: Screen Display - Input Pin Code For First Key Teaching (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

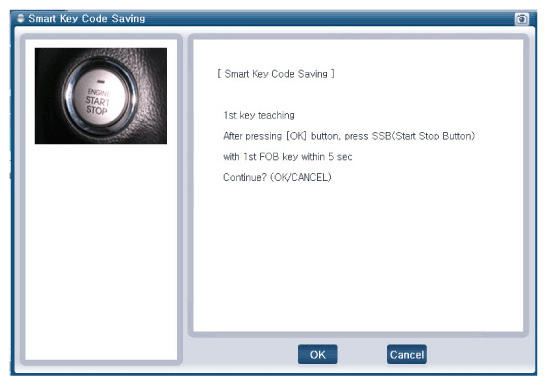

Press the SSB with smart key within 5 sec after pressing "OK".

Fig 6: Screen Display - SSB With Smart Key Within 5 Sec
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First Key Teaching Completed".

Fig 7: Screen Display - Message First Key Teaching Completed
Courtesy of HYUNDAI MOTOR AMERICA

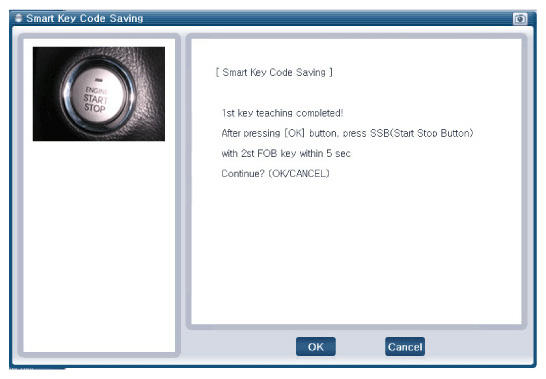

Press the SSB with smart key within 5 sec after pressing "OK".

Fig 8: Screen Display - SSB With Smart Key Within 5 Sec
Courtesy of HYUNDAI MOTOR AMERICA

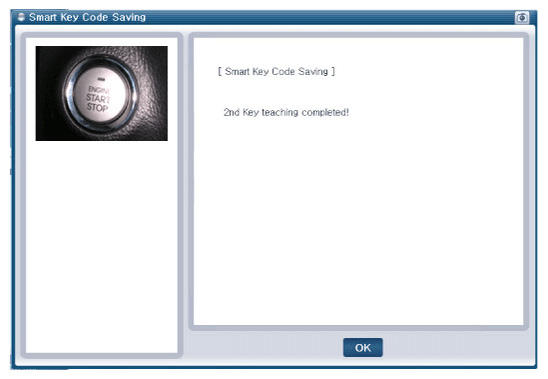

Confirm the message "Second Key Teaching Completed".

Fig 9: Screen Display - Message Second Key Teaching Completed
Courtesy of HYUNDAI MOTOR AMERICA

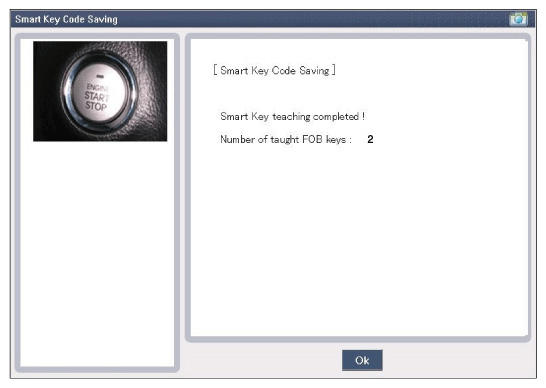

Then the screen will be shown as below when key teaching process is completed.

Fig 10: Screen Display - Key Teaching Process Completed

Courtesy of HYUNDAI MOTOR AMERICA
