Schematic Diagram: Notes

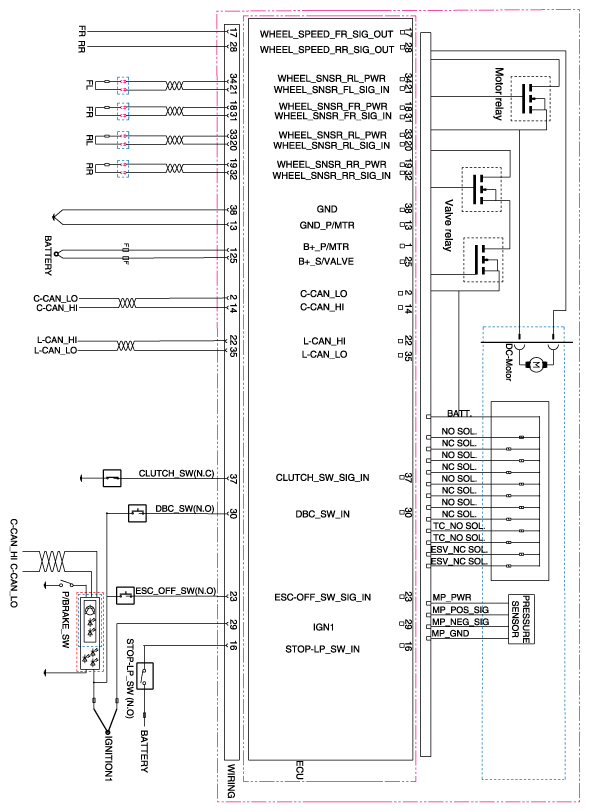

Fig 1: Brake System Schematic Diagram
G11644736Courtesy of HYUNDAI MOTOR AMERICA
