Components Location (2)

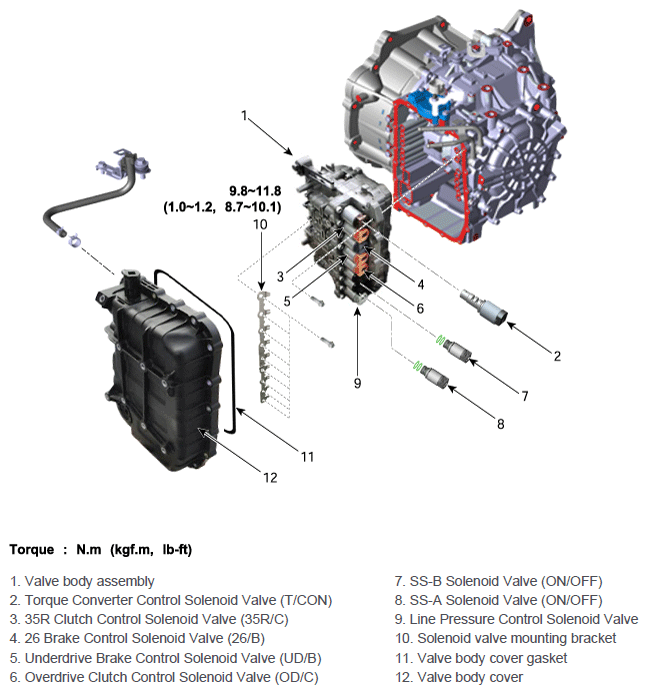

Fig 1: Automatic Transaxle Control System Components With Torque Specification (2)
G11643862Courtesy of HYUNDAI MOTOR AMERICA
