Engine Control System - 1.6L GDI
>>
ETC (Electronic Throttle Control) System
>>
Description and Operation
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

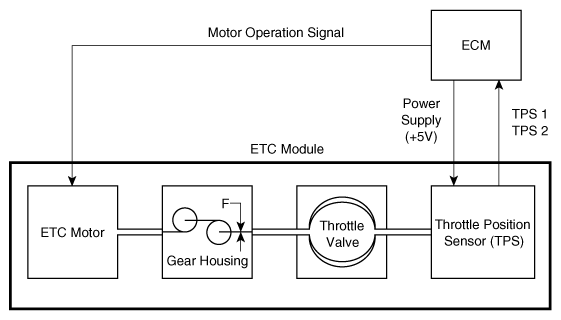

Fig 1: ETC Module Block Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
