Neutralization Status Check

Connect the cable of GDS to the Data Link Connector in driver side Crash Pad Lower Panel.

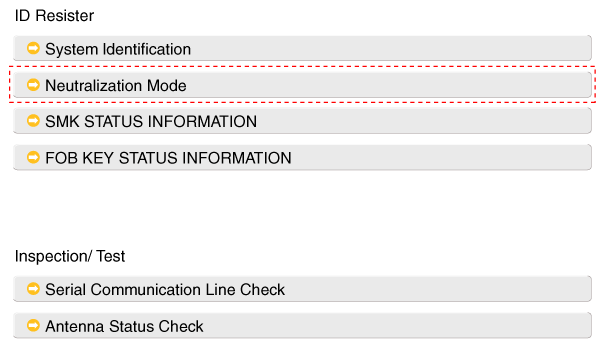

After IG ON, select the "Neutralization Mode".

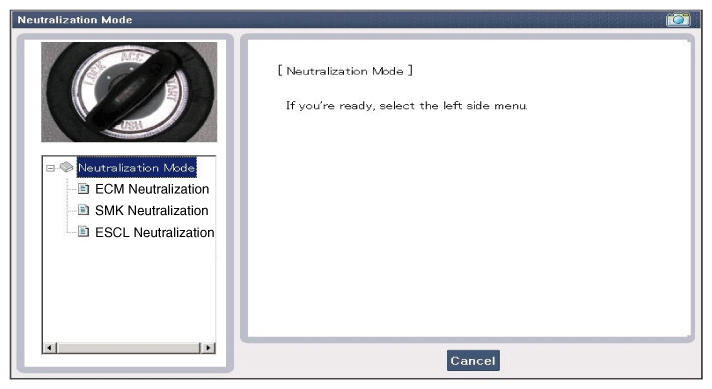

Fig 1: Neutralization Mode (1 Of 2) - Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Neutralization Mode (2 Of 2) - Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

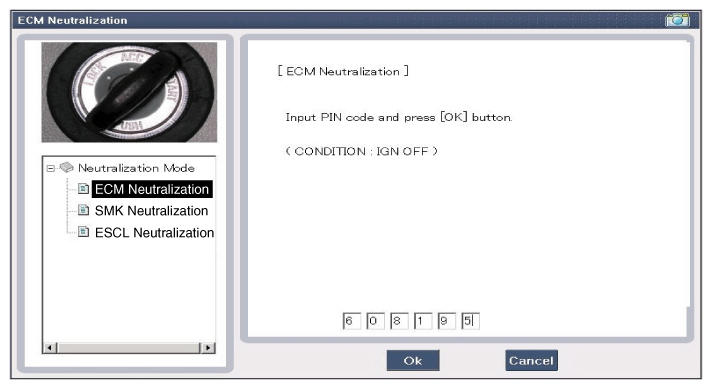

Fig 3: ECM Neutralization (1 Of 2) - Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

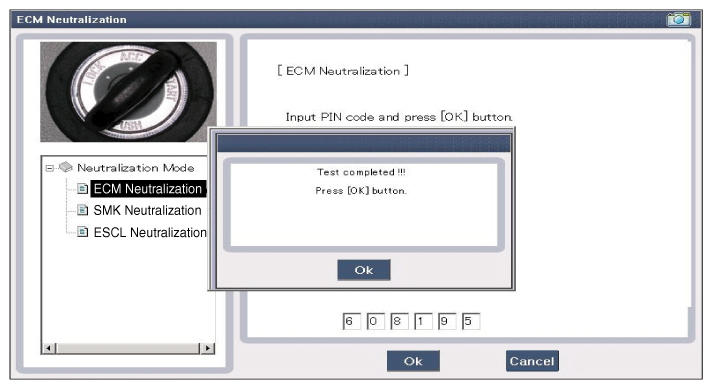

Fig 4: ECM Neutralization (2 Of 2) - Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

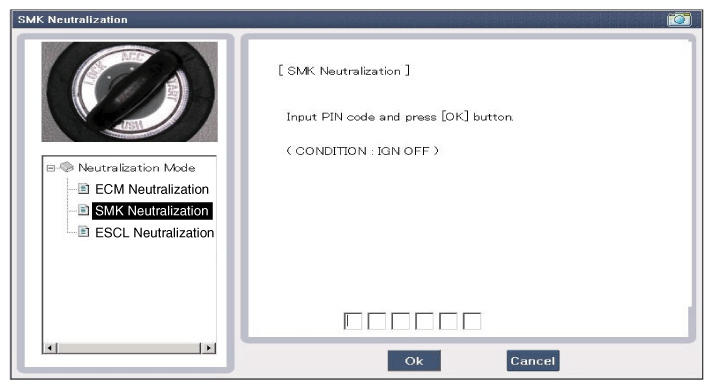

Fig 5: SMK Neutralization (1 Of 3) - Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: SMK Neutralization (2 Of 3) - Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: SMK Neutralization (3 Of 3) - Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

INPUT SWITCH LIST

ACTUATOR LIST

No.	Item Name	Condition
1	Immo.indicator Lamp	Ignition switch ON Engine off
2	External Buzzer	Ignition switch ON Engine off
3	Interior Antenna 1 Active	Ignition switch ON Engine off
4	Interior Antenna 2 Active	Ignition switch ON Engine off
5	Trunk Antenna Active	Ignition switch ON Engine off
6	Bumper Antenna Active	Ignition switch ON Engine off
7	DRV DR Antenna Active	Ignition switch ON Engine off
8	AST DR Antenna Active	Ignition switch ON Engine off
