Component Inspection
■ Check Smart Key ECM Inspection
- IG KEY "ON" & Engine "OFF".
- Neutralize Smart Key ECM with GDS.
- Perform Key Teaching Procedure for Smart Key ECM with GDS.CAUTION: Pin code must be prepared to Neutralize Smart Key ECM and to perform Key Teaching Procedure.
- Is the Neutralization of Smart Key ECM, Engine ECM and Key Teaching normal?
YES
- Fault is intermittent caused by poor contact in Smart Key ECM and/or ECM's connector or was repaired and Smart key ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good Smart Key ECM and check for proper operation. If the problem is corrected, replace Smart Key ECM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NOTE: ■ PIN code is programmed in Smart key ECM Transponder.- If the Smart Key ECM is not registered with PIN, the Key Teaching process is not proceeded.
- Registering PIN is available after Smart Key ECM is neutralized.
- Neutralization of Engine ECM is available with GDS (Registering PIN code)
- If the Virgin Engine ECM is installed on vehicle, the Engine ECM is automatically programmed with PIN code by Smart Key ECM.
- Registering PIN code is only possible for Virgin or Neutralized Status.

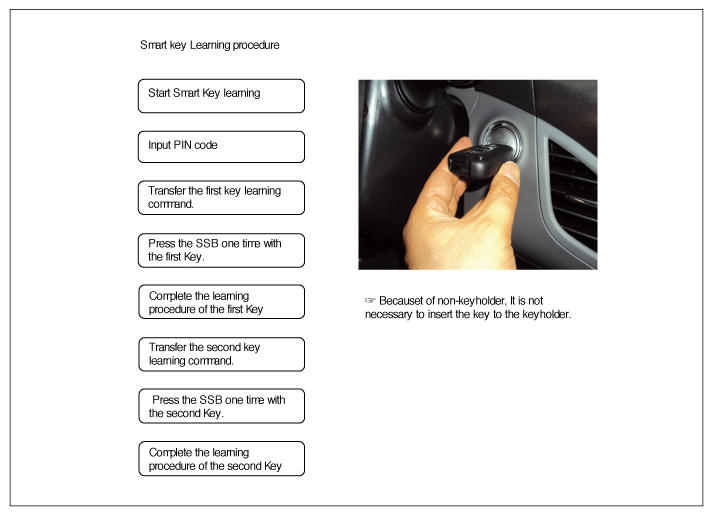

■ All learning procedures are able to do with a GDS in the vehicle's Ignition Key Off state.- Smart Key ECM Learning
- Before learning procedure for FOB Key, Smart Key ECM should be registered a PIN code first.
- In case of replacing Smart Key ECM, all of the key's should be newly registered again.
- In case the Smart Key ECM receives 3 times with wrong PIN, it is not allowed for Neutralization and Key Teaching for 1 hour.
- If the battery is discharged during Neutralization or Teaching Timer, you will start again from beginning; Therefore, it is avoidable to wait for 1 hour.
