Engine Control System - 1.6L GDI
>>
Crankshaft Position Sensor (CKPS)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
[Non - ISG]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[Non - ISG]

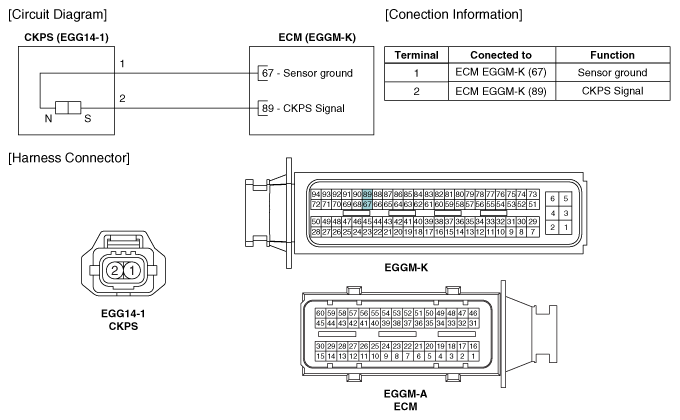

Fig 1: CKPS Circuit Diagram (NON-ISG) With Connector End Views
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
