Circuit Diagram

(M/T)

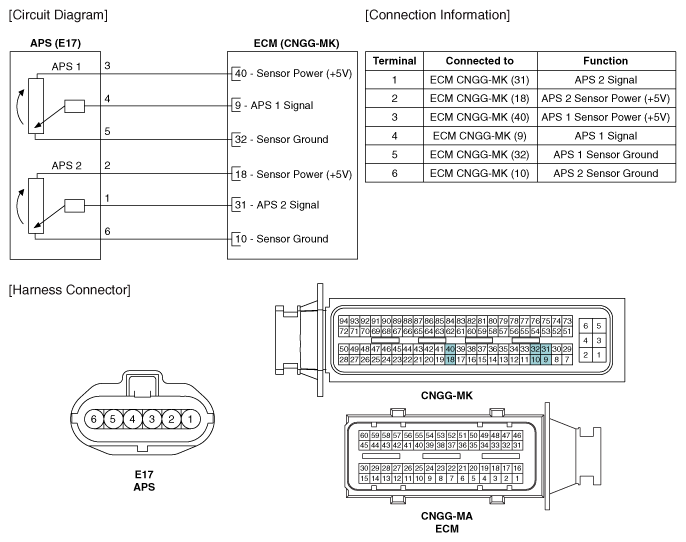

Fig 1: Accelerator Position Sensor Circuit Diagram (M/T) With Connector End Views
G10604587Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

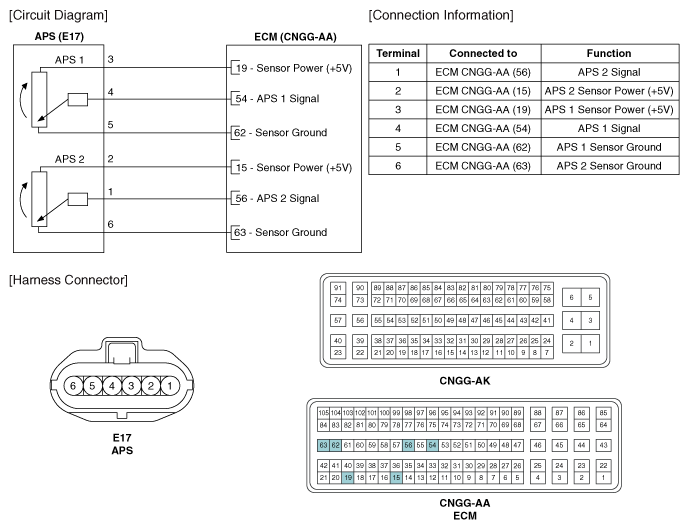

Fig 2: Accelerator Position Sensor Circuit Diagram (A/T) With Connector End Views
G10604588Courtesy of HYUNDAI MOTOR AMERICA
