Section 21 (Auto Lighting Control System)
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

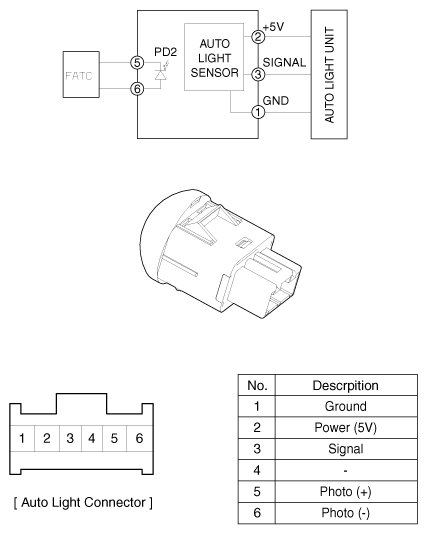

Fig 1: Auto Lighting Control System Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
