Repair Procedures: Inspection

Disconnect the back up lamp switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.
If necessary, repair or replace the backup lamp switch.

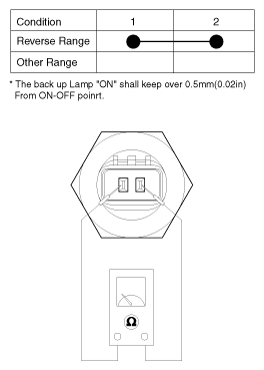

Fig 1: Checking Continuity Between No. 1 & 2 Terminals Of Backup Lamp Switch

Courtesy of HYUNDAI MOTOR AMERICA
